描述

TP-Link Archer BE550 V2 是 BE9300 三頻 Wi-Fi 7 路由器，支援多鏈路操作（MLO）及 EasyMesh，設 5 個 2.5G 網絡埠。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：無線網絡方案、網絡佈線工程。

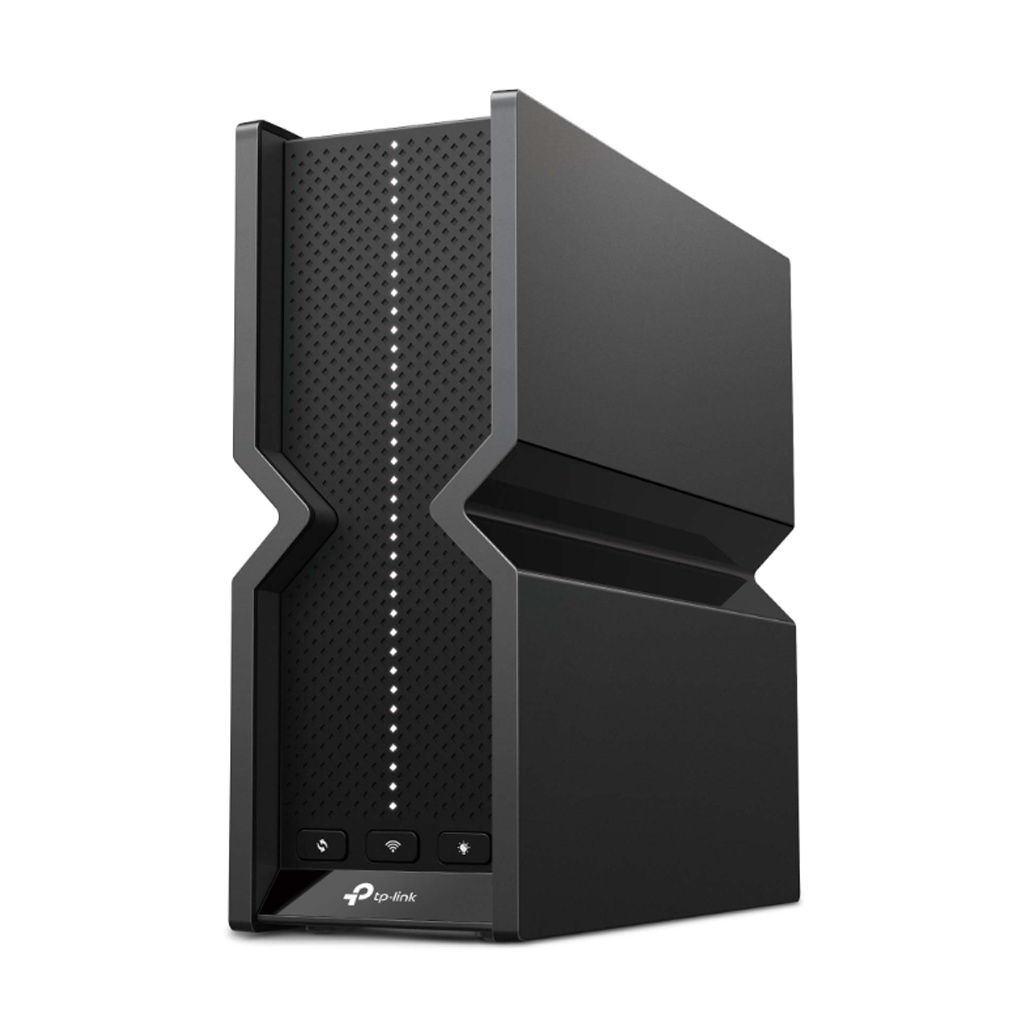

TP-Link Archer BE550 V2

BE9300 Tri-Band Wi-Fi 7 Router

Features

Redefining WiFi Routers
Blazing-Fast 9328 Mbps Tri-Band WiFi 7
Multi-Link Operation (MLO)
5× 2.5G Ports
Maximized Coverage
EasyMesh-Compatible
Easy Setup and Use
TP-Link HomeShield
Great Compatibility

Specifications

WIRELESS
WiFi Speeds	BE9300 • 6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11be)
WiFi Range	4 Bedroom Houses 6× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High Tri-Band Allocate devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth
Working Modes	• Router Mode • Access Point Mode
Advanced Features	• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network
SECURITY
Network Security	• SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	• 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server
VPN Client	• Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client
WiFi Encryption	• WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x)
HARDWARE
Ethernet Ports	• 1× 2.5 Gbps WAN • 4× 2.5 Gbps LAN
USB Support	1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server
Buttons	• Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button
Power	12 V ⎓ 3.3 A
SOFTWARE
Protocols	• IPv4 • IPv6
Service Kit	HomeShield
EasyMesh	Compatible with EasyMesh
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Type	• Dynamic IP • Static IP • PPPoE • PPTP • L2TP
Quality of Service	QoS by Device
Cloud Service	• Auto Firmware Upgrade • TP-Link ID • DDNS
NAT Forwarding	• Port Forwarding • Port Triggering • DMZ • UPnP
IPTV	• IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN
DHCP	• Address Reservation • DHCP Client List • Server
DDNS	• TP-Link • NO-IP • DynDNS
Management Features	• Tether App • Webpage
