描述

TP-Link Archer C6 V2 是 AC1200 雙頻 MU-MIMO Gigabit 無線路由器，2.4 GHz 300 Mbps 及 5 GHz 867 Mbps，設 4 支外置及 1 支內置天線，可用 Tether App 管理。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：無線網絡方案、家居方案。

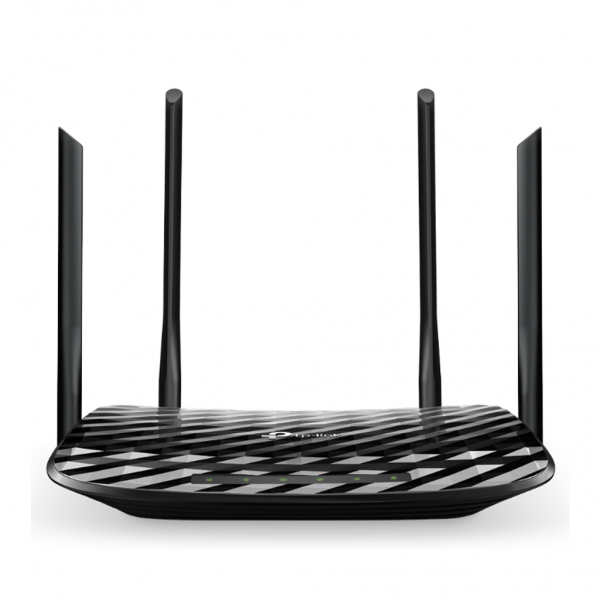

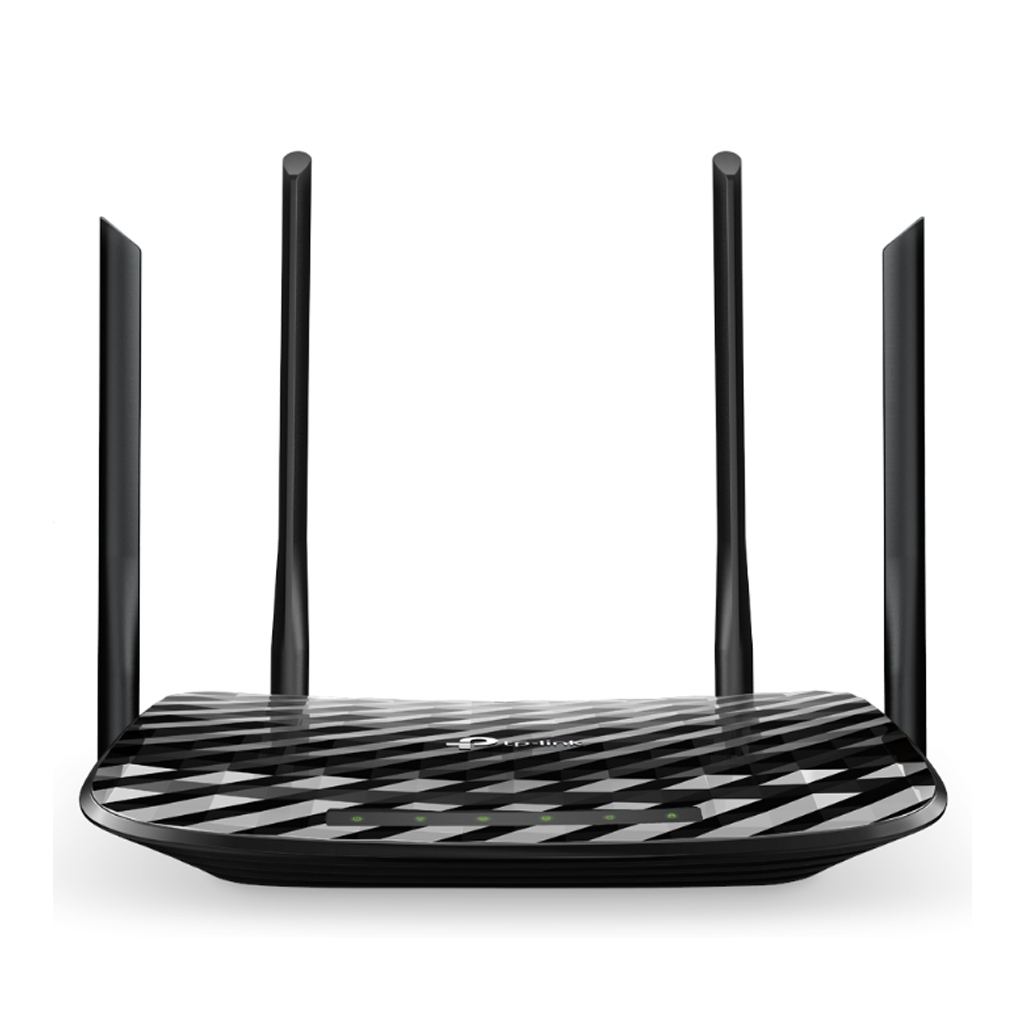

TP-Link Archer C6 V2

AC1200 Wireless MU-MIMO Gigabit Router

Features

Supports 802.11ac standard
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
Easy network management at your fingertips with TP-Link Tether
MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
Beamforming technology delivers wider wireless coverage
Supports Access Point mode to create a new Wi-Fi access point

Specifications

WIRELESS
Standards and Protocols	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range	3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
Wireless Mode	Router Mode Access Point Mode
SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
WiFi Encryption	EU Version: WPA WPA2 WPA/WPA2-Enterprise (802.1x) US, TW Version: WPA WPA2 WPA3
HARDWARE
Processor	Qualcomm CPU
Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
Buttons	WPS/Wi-Fi Button Power On/Off Button Reset Button
Power	12 V ⎓ 1 A
SOFTWARE
Protocols	IPv4 IPv6
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
NAT Forwarding	Virtual Servers Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	NO-IP DynDNS
Management Features	Tether App Webpage
PHYSICAL
Dimensions (W×D×H)	9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
Package Content	Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
