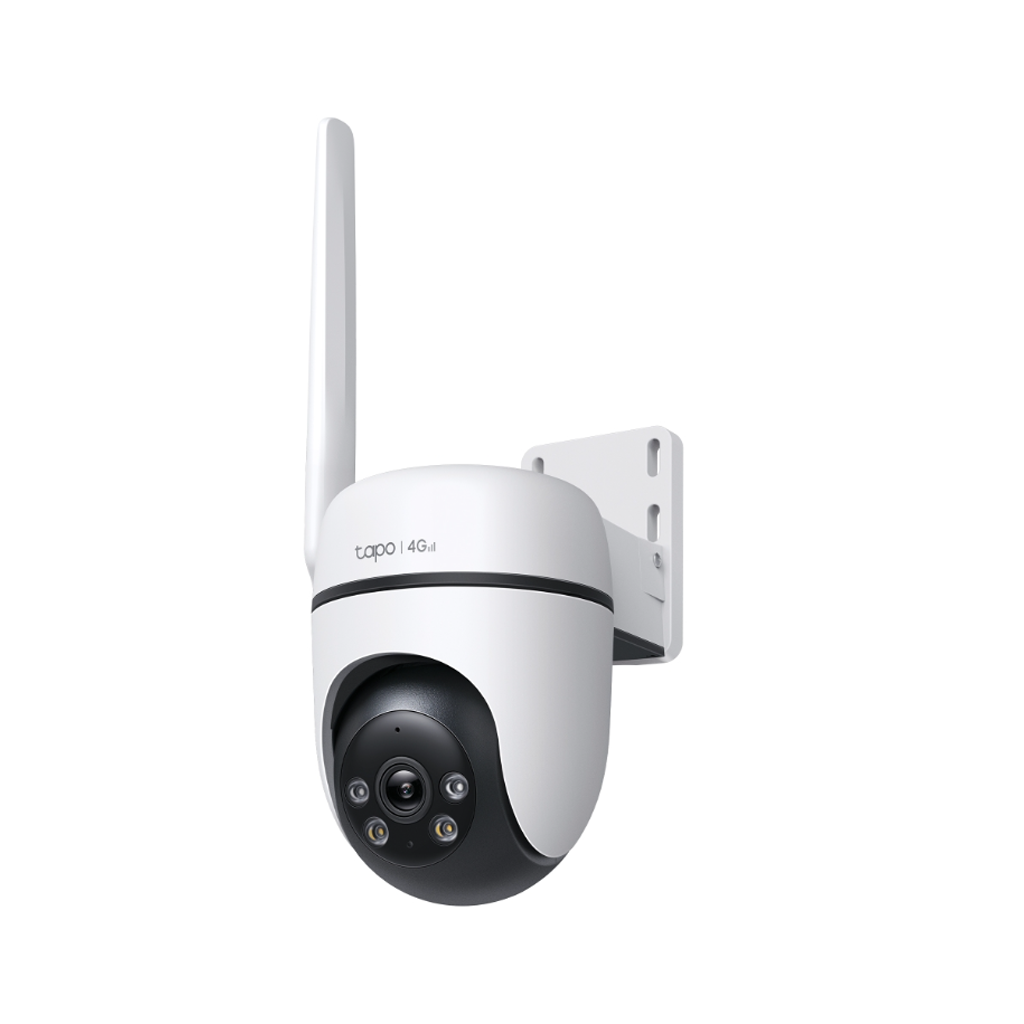

TP-Link Tapo C501GW
Outdoor Pan/Tilt 4G LTE Camera
Features
- No Wi-Fi, No Limit
- 360° All-Round Protection
- Free AI Detection
- 1080P Full HD
- Starlight Color Night Vision
- IP66 Weatherproof
- Sound and Light Alarm
- Local and Cloud Storage
- Dual Mode Flexibility with 4G or PoE
Specifications
| CAMERA | |
| Image Sensor | 1/2.9” CMOS Sensor |
| Lens | Focal Length: 3.17 mm Aperture: F1.65 Field of View: 122° (Diagonal), 105°(Horizontal), 59°(Vertical) |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 60° (130° Tilt Coverage) |
| Night Vision | 850 nm IR LED (98 ft / 29.9 m), starlight color night vision |
| Interface & Button | 1× DC Port 1× Ethernet Port, PoE 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) 1× Nano-SIM Card Slot |
| VIDEO & AUDIO | |
| Maximum Resolution | 1920 × 1080 px |
| Frame Rate | 15/20/25/30 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Tamper Detection Line-Crossing Detection Meow Detection Bark Detection Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
| Network Connectivity | 3G/4G LTE/LAN Cable |
| RTSP | Yes |
| ONVIF | YES (Only Available in Ethernet Mode) |
| 4G | |
| Frequency | LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41 |
| POWER | |
| Power Source | 12V DC Power Adapter PoE: 802.3 af/at |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | DC Power:12V, 1A |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm) Camera Dimensions with included antennas and bracket 5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm) |
