描述
TP-Link TL-WR840N V6.20 是 300 Mbps 無線 N 路由器，支援路由器、訊號延伸器、AP 及 WISP 四種模式，以及 IPTV 及訪客網絡。香港防盜為安裝商及經銷商，規格以原廠為準。

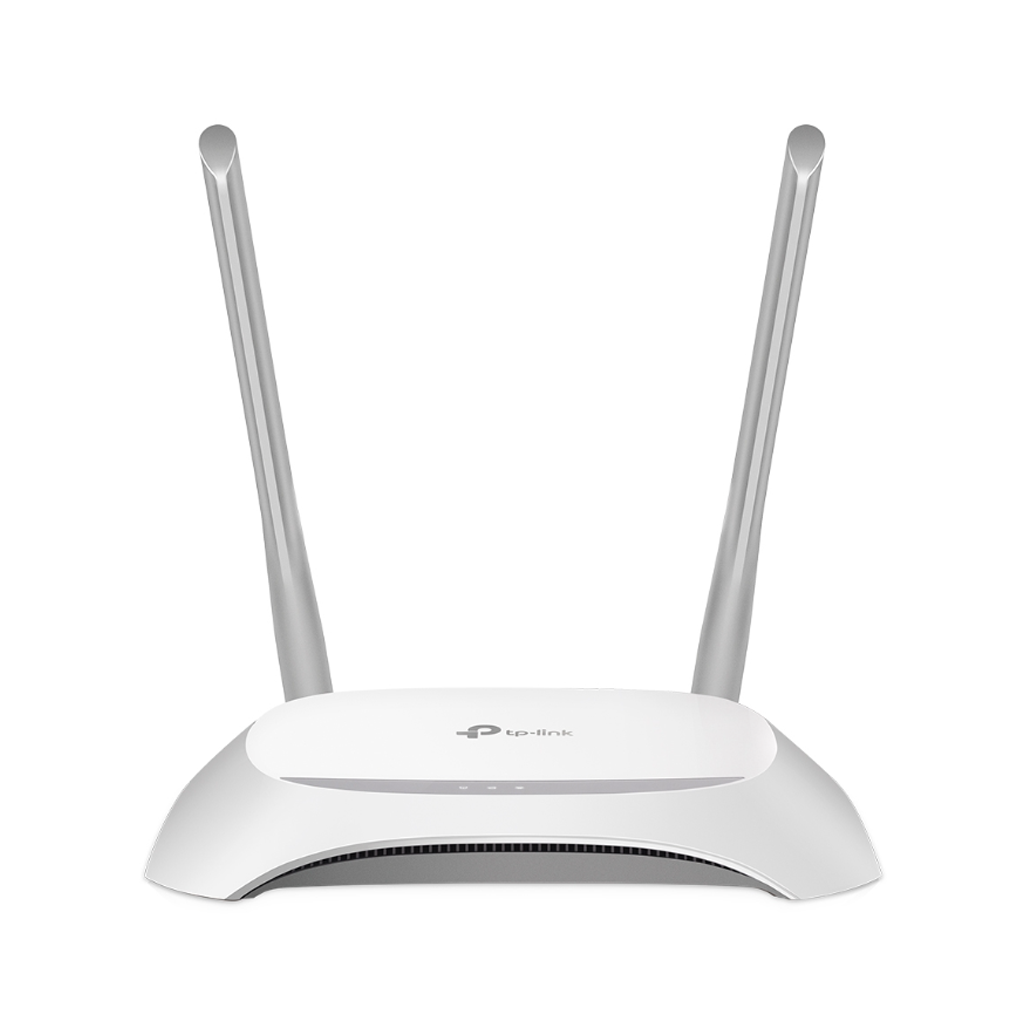

TP-Link TL-WR840N V6.20
300 Mbps Wireless N Router
Features
- 300 Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
- Supports 4 modes: Router, Range Extender, Access Point and WISP modes
- Parental Controls manage when and how connected devices can access the internet
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- compatible with IPv6 (Internet Protocol version 6)
- Guest Network provides separate access for guests while securing the home network
Specifications
| WIRELESS | |
| Standards and Protocols | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses
2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Wireless Mode | Router Mode Access Point Mode Range Extender Mode WISP Mode |
| SECURITY | |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management Features | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm) |
| Package Content | Wi-Fi Router TL-WR840N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
