描述

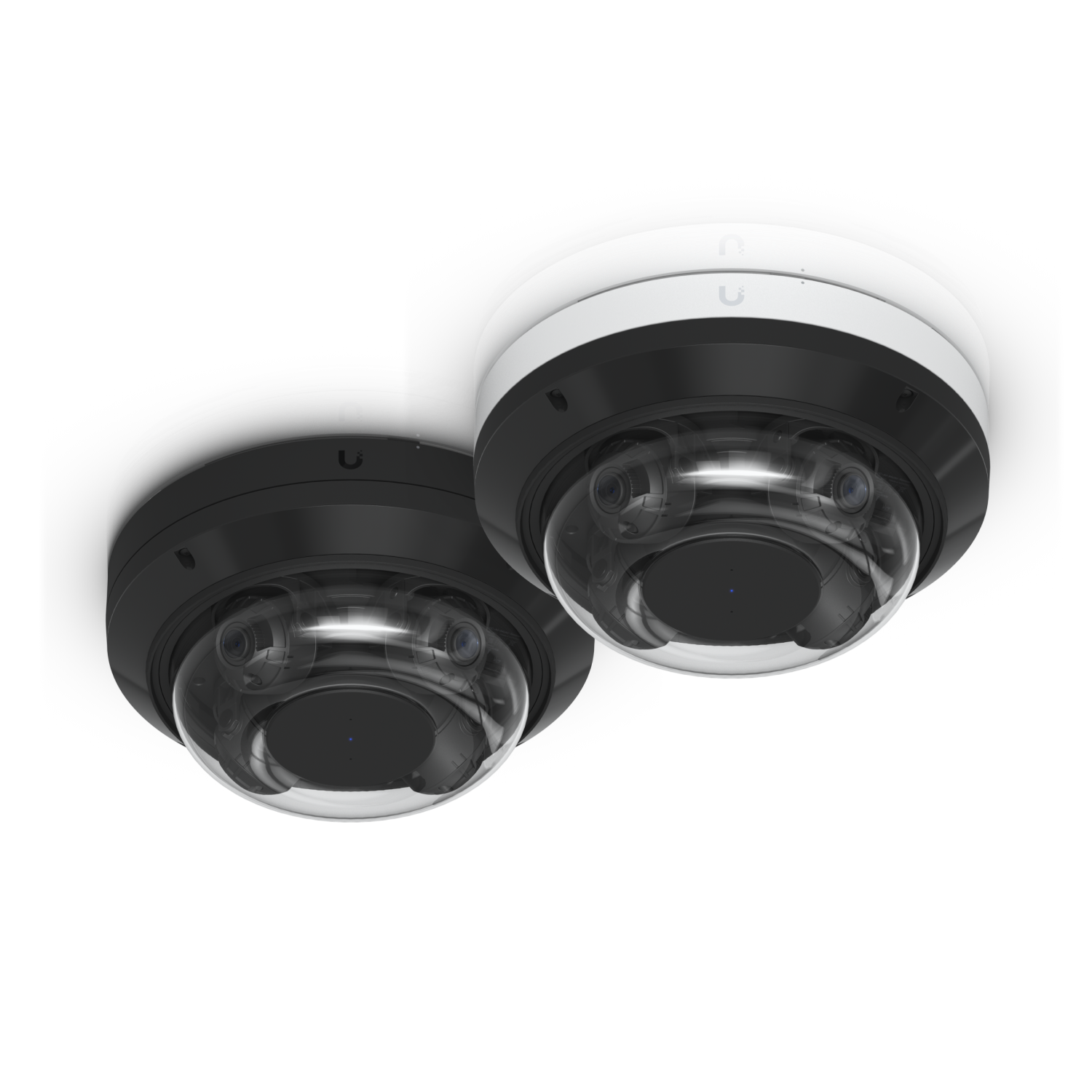

UVC-AI-MS-4
Camera AI Multi Sensor 4
UVC-AI-MS-4 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
All-weather PoE++ 32MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 360° IR coverage, and four independently adjustable lenses for seamless wide-area and close-up monitoring.
規格
Overview
| Dimensions | ⌀255 x 105 mm; (⌀10.04 x 4.13") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2.33x Optical |
| Resolution | 32MP |
| Field of View | Wide: H: 108.8°, V: 57.6° , D: 130.8°; Tele: H: 42.8°, V: 24.1° , D: 49.1° |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Ceiling mount (Included); Pole, Corner, Arm, Pendant mount (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 24 FPS |
| Resolution | (4) 8MP 3840 x 2160 (16:9) |
| Sensor | 1/2.8" 8MP |
| Lens | (4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Night Mode | Built-in (16) IR LEDs with adaptive control |
Hardware
| Max. Power Consumption | 34.6W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Dual core Arm® Cortex®-A76 based chip |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | (2) MicroSD card; (1) M.2. 2280 SATA SSD |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
