描述

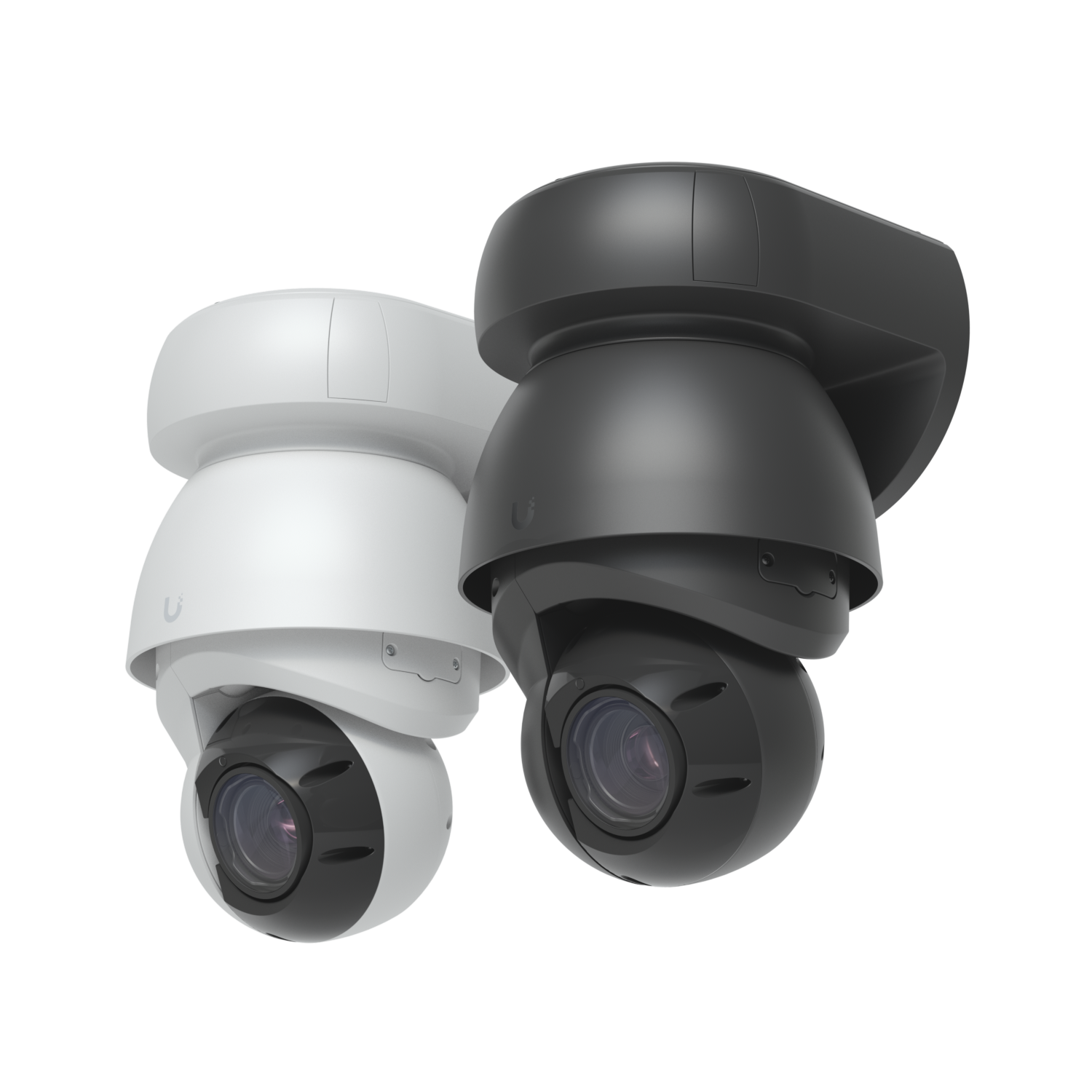

UVC-AI-PTZ
Camera AI PTZ Industrial
UVC-AI-PTZ 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Industrial-grade 4K PoE++ PTZ camera with enhanced AI capabilities, 22x optical zoom, and long-range adaptive IR LED night vision.
功能重點
- 4K (8MP) video resolution
- 22x optical zoom
- 100 m (328 ft) IR night vision
- AI event detections and automatic person tracking
- Ultra-low latency remote control
- Connect and power using PoE++
- Weatherproof (outdoor exposed)
規格
Overview
| Dimensions | 207 x 223.7 x 341.3 mm; (8.2 x 8.8 x 13.4") |
|---|---|
| IR Night Vision | 100 m (328 ft) |
| Zoom Mode | 22x Optical |
| Resolution | 4K |
| Field of View | Wide: H: 59.8°, V: 44.4° , D: 70°; Tele: H: 3°, V: 2.24° , D: 3.76° |
| Pan-Tilt Range | Pan: 360° (Endless) ; Tilt: 120° |
| Weatherproofing | IP66 |
| Mounting | Wall, Pole mount, Desk stand (Included) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast; white balance, exposure control; 2DNR, 3DNR, NR by motion; masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 6.36-138.5 mm; ƒ/1.5-ƒ/3.4 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 51W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Without mount: 3.8 kg (8.4 lb); Wall mount (Pedant): 3 kg (6.6 lb); Table stand: 150 g (5.3 oz); Pole mount: 320 g (11.3 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -40 to 50º C (-40 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
