描述
UVC-G6-PTZ
Camera G6 PTZ
UVC-G6-PTZ 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

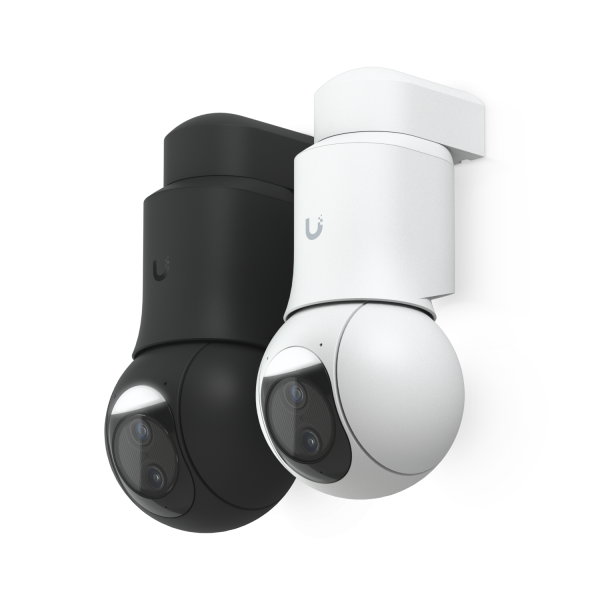

All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8″ 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
規格
Overview
| Dimensions | Without mount: ⌀107.2 x 104.5 x 203.2 mm ; (⌀4.2 x 4.1 x 8") ; ; With mount: ⌀107.2 x 111 x 230.2 mm ; (⌀4.2 x 4.4 x 9.1") |
|---|---|
| IR Night Vision | 30 m (98 ft) |
| Zoom Mode | 10x Hybrid |
| Resolution | 4K |
| Field of View | Wide: H: 109.9°, V: 56.7°, D: 134.1°; Tele: H: 26.6°, V: 15.1° , D: 30.4° |
| Pan-Tilt Range | Pan: 350°; Tilt: 100° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, Surface, Ceiling, Pole mount (Included); Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | Wide: 1/1.8" 8MP; Tele: 1/1.8" 8MP |
| Lens | Wide: F 4.46 mm; ƒ/1.65; Tele: F 16.3 mm; ƒ/2.4 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 24.5W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without arm mount: 1 kg (2.2 lb); With arm mount: 1.1 kg (2.4 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Arm mount: polycarbonate; Pole mount: aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
