描述
UVC-AI-PTZ-Precision

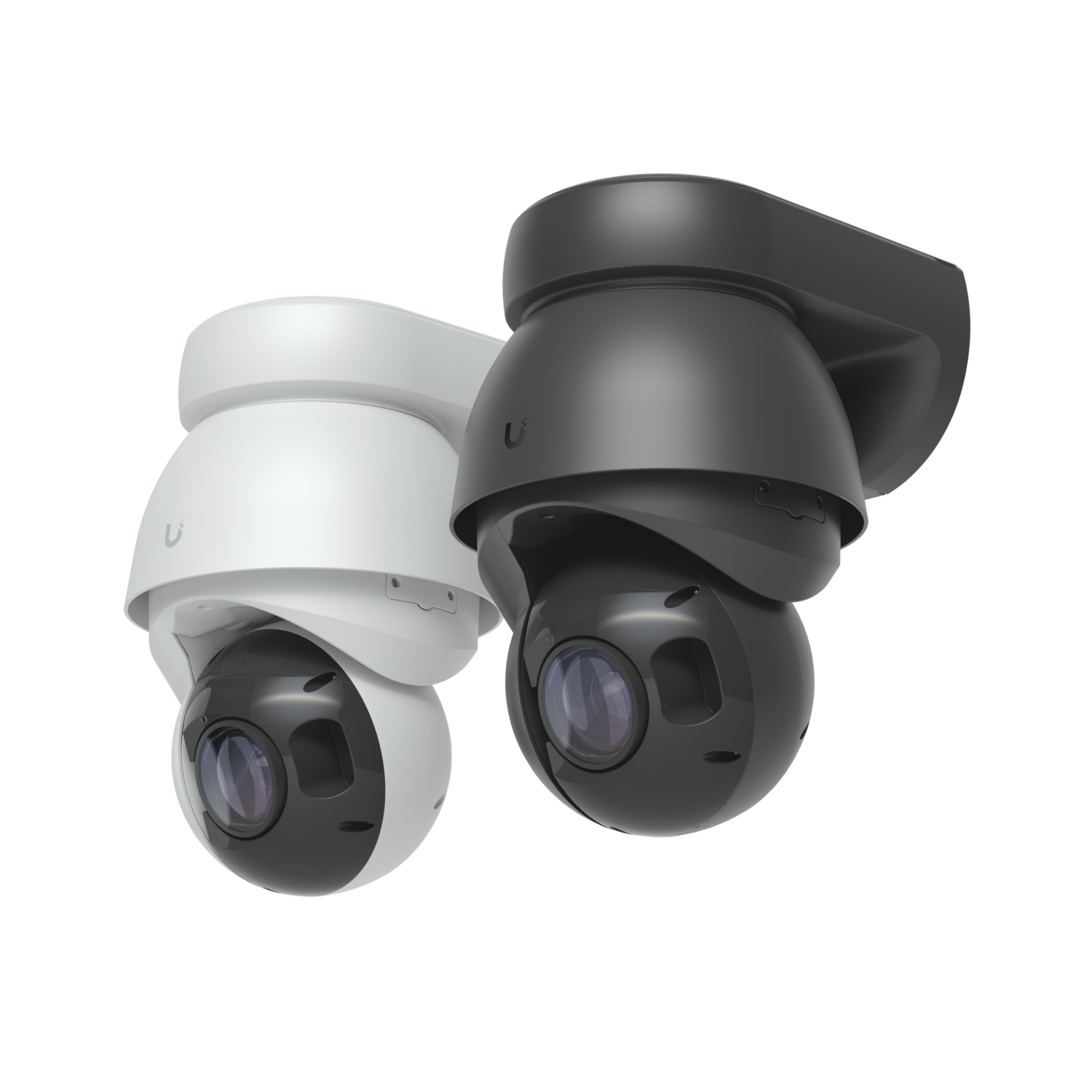

Camera AI PTZ Precision
UVC-AI-PTZ-Precision 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Industrial-grade 4K PTZ camera with enhanced AI capabilities, 31× optical zoom, adaptive IR LED night vision, and LiDAR technology for faster autofocus.
規格
Overview
| Dimensions | Without mount: ⌀241 x 349 mm ; (⌀9.5 x 13.7"); ; With mount: 372 x 241 x 299 mm; (14.7 x 9.5 x 11.8") |
|---|---|
| IR Night Vision | 100 m (328 ft) |
| Zoom Mode | 31x Optical |
| Lightning Zoom | Coming Soon |
| Resolution | 4K |
| Field of View | Wide: H: 59°, V: 34.1° , D: 67.1°; Tele: H: 1.98°, V: 1.12° , D: 2.27° |
| Pan-Tilt Range | Pan: 360° (Endless) ; Tilt: 120° |
| Weatherproofing | IP66 |
| Mounting | Wall, Pole mount, Desk stand (Included) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast; white balance, exposure control; 2DNR, 3DNR, NR by motion; masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 6.91-214.64 mm; ƒ/1.36-ƒ/4.6 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 51W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 2–4" (50–100 mm); 4.5–6" (115–150 mm) |
| Weight | Without mount: 5.5 kg (12.1 lb); Wall mount (Pendant): 2.6 kg (5.7 lb); Table stand: 200 g (7.1 oz); Pole mount: 300 g (10.6 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -40 to 50º C (-40 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
