描述

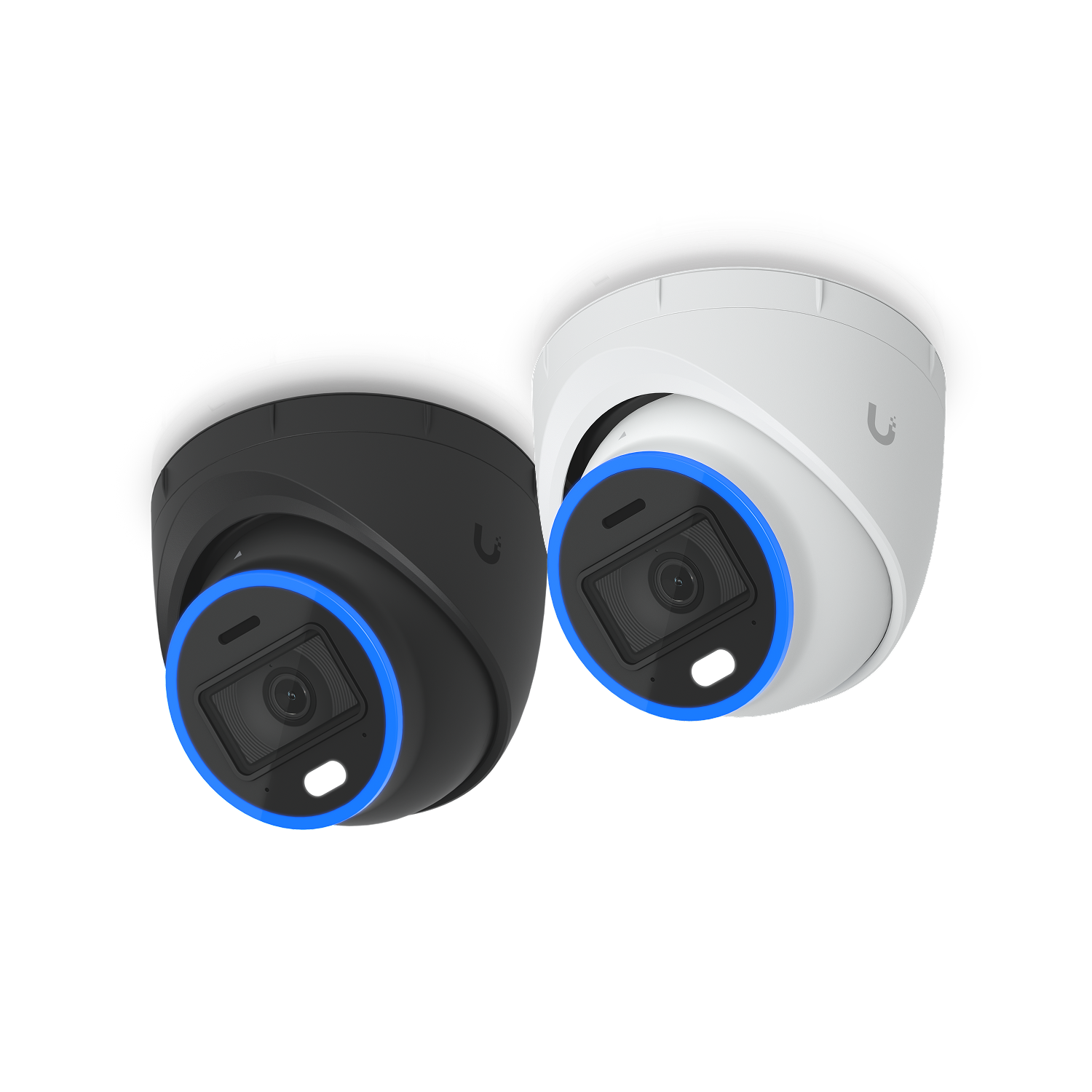

UVC-AI-Turret
Camera AI Turret
UVC-AI-Turret 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
All-weather, vandal-proof 4K PoE+ turret camera with enhanced AI capabilities and IR and visible LEDs for night vision.
功能重點
- 4K (8MP) video resolution
- Ultra-wide viewing angle (109.9°)
- 40 m (131 ft) IR night vision
- Advanced AI: Face and license plate recognition
- Integrated LED spotlight for color night vision
- Far-field microphone array for two-way audio
- Micro SD card support for edge recording*
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
- *microSD card must have at least 64 GB of storage.
規格
Overview
| Dimensions | ⌀118 x 111 mm; (⌀4.6 x 4.4") |
|---|---|
| IR Night Vision | 40 m (131 ft) |
| Resolution | 4K |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK08 |
| Mounting | Ceiling, arm, wall, pendant mount, junction box |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 20W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 990 g (2.2 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Expansion Slot | MicroSD Card |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50º C (-22 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
