描述
UVC-G6-Edge-Turret

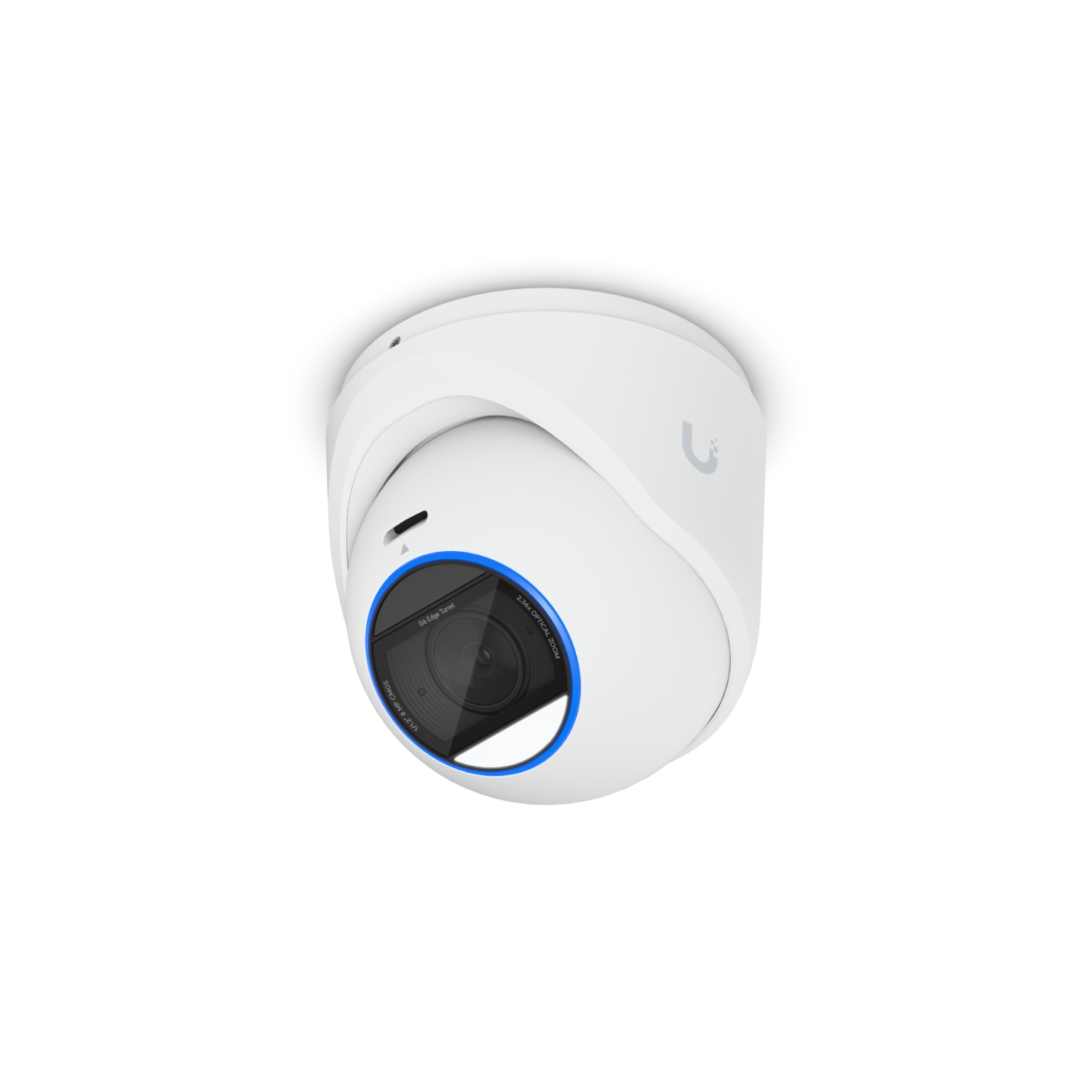

Camera G6 Edge Turret
UVC-G6-Edge-Turret 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
All-weather, tamper-resistant 4K PoE+ camera that supports standalone operation* (NVR optional), integrated AI-powered search, 2.36x optical zoom, and a large 1/1.2″ CMOS sensor for exceptional low-light clarity and long-range IR night vision.
*Mobile app setup required for standalone.
規格
Overview
| Dimensions | ⌀117.2 × 116.5 mm; (⌀4.6 × 4.6") |
|---|---|
| IR Night Vision | 40 m (131 ft) |
| Zoom Mode | 2.36x Optical |
| Resolution | 4K |
| Field of View | Wide: H: 113.8°, V: 61.9°, D: 134°; Tele: H: 45.5°, V: 25.8°, D: 52° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, Wall mount (Included); Arm, Pendant mount, Junction box (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port; Bluetooth |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.2" 8MP |
| Lens | F 5.85-13.8 mm; ƒ/1.5-ƒ/2.9 |
| Night Mode | Built-in adaptive IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 25W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Dual-core Arm® Cortex®-A76 based chip |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2'') |
| Cable Length | 30 cm (1 ft) |
| Jacket Enclosure Dimensions | ⌀20 x 70.55 mm; (⌀0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50º C (-22 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Mobile App | iOS UniFi 10.38.1 version or later; iOS Protect 3.11.1 version or later; ; Android UniFi 11.0.1 version or later; Android Protect 3.8.3 version or later |
|---|
