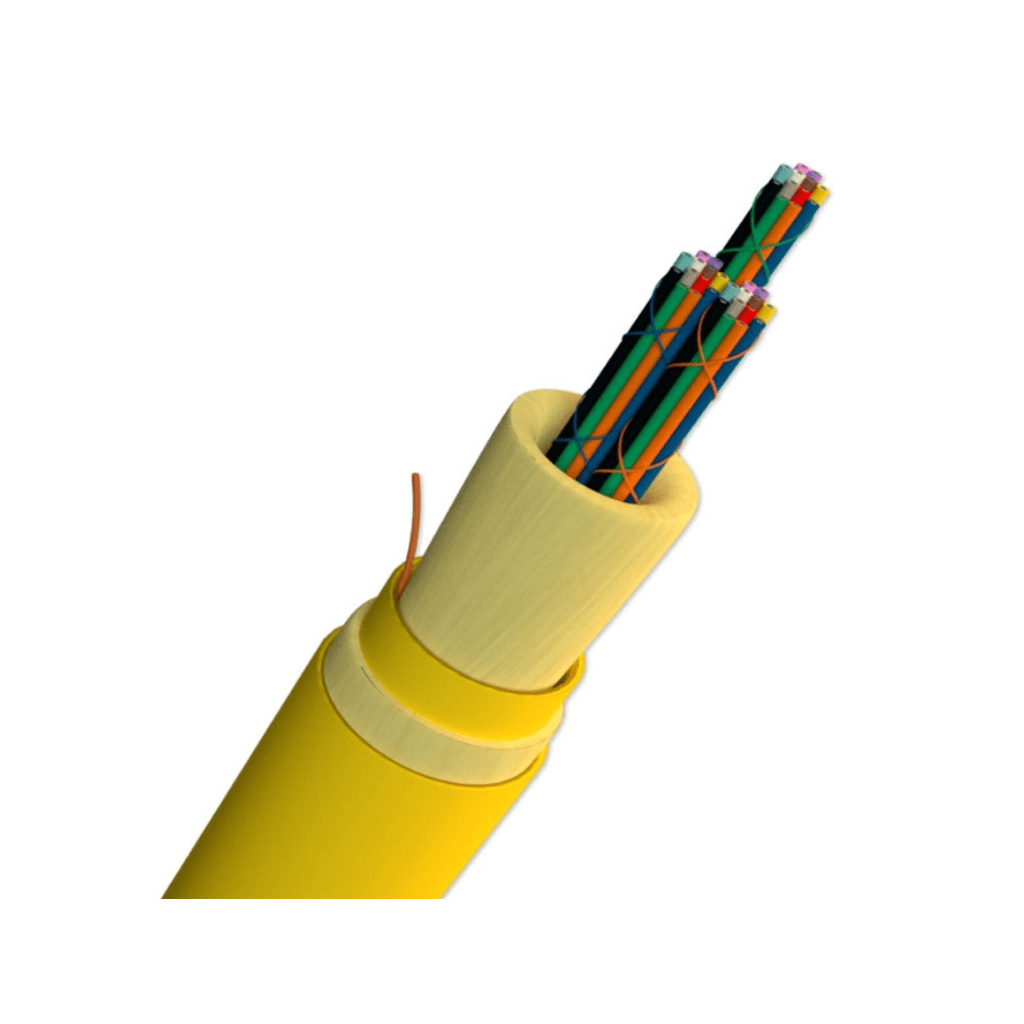

AFL Ruggedized MicroCore® Fiber Cable with SpiderWeb Ribbon® Technology
Features
- SpiderWeb Ribbon (SWR) optical fiber technology
- Fiber counts 12 to 144
- Flame-rated jacket
- All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within core for use with MT termination
- Installation tension rating of 150 lbs
- Plenum, LSZH
- RQ, RE
Applications
- Headend termination to a fiber “backbone”
- Termination of fiber rack systems
- Intra-building “backbones”
- MTP/MPO or MTP to breakout terminations
Temperature Specifications
| TEMPERATURE RANGE | ||
| PLENUM | LSZH | |
| INSTALLATION | 0°C to +60°C | 0°C to +60°C |
| OPERATION | 0°C to +70°C | -20°C to +70°C |
| STORAGE | -40°C to +70°C | -40°C to +70°C |
