描述

AP6020A

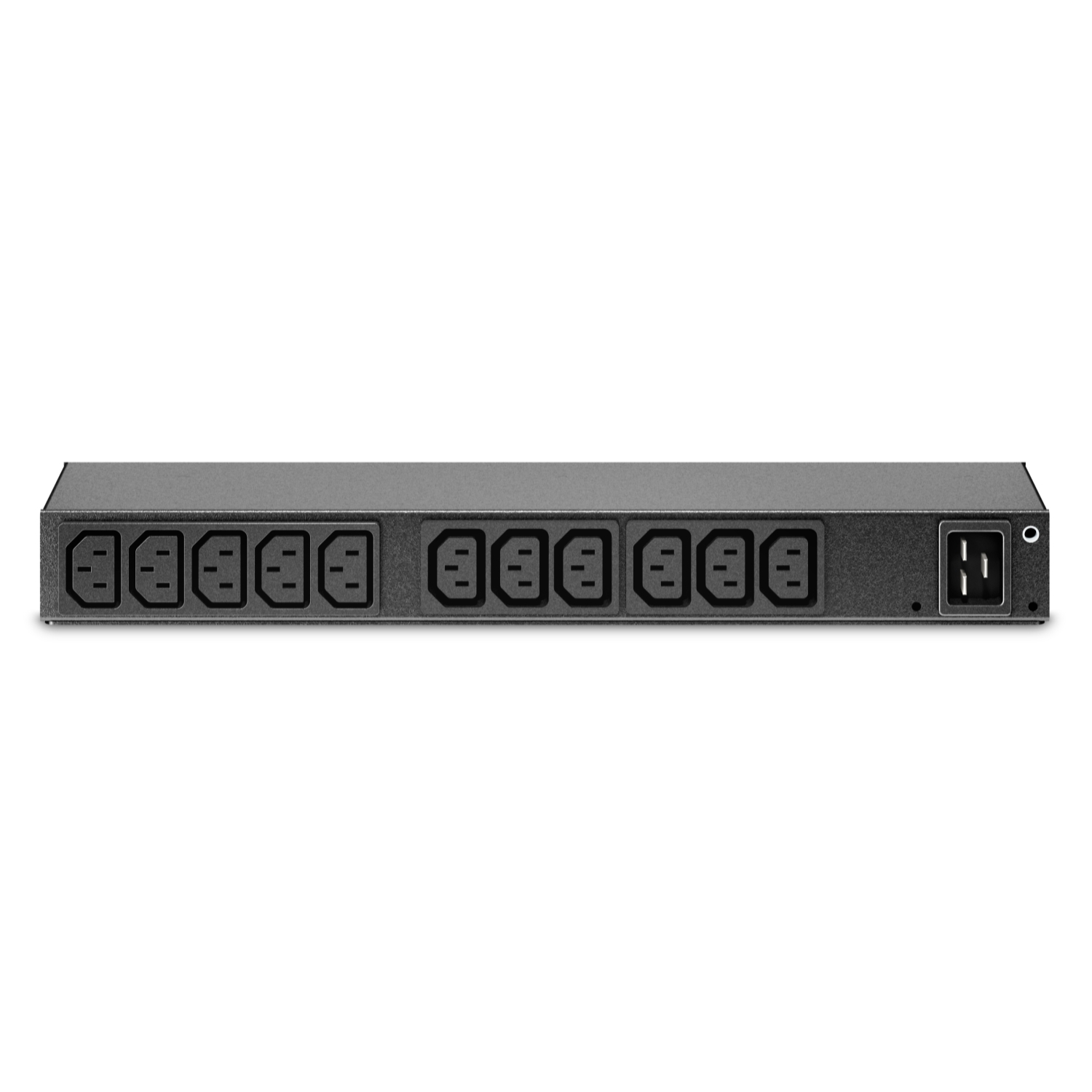

NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW

AP6020A 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

規格

主要規格

Product or component type	PDU
Main Input Voltage	100 V; 120 V; 200 V; 208 V; 230 V; 240 V
Input current limits	20 A
Network frequency	50/60 Hz
Input Connection Type	IEC 60320 C20
Number of power socket outlets	13 IEC 60320 C13
Load capacity	3300 VA
[In] rated current	16 A
permissible voltage	100…240 V
Max current draw	20 A
Max line current	20 A
PDU type	Basic
Number of rack unit	1U
Provided equipment	Installation guide; Safety guide
