描述

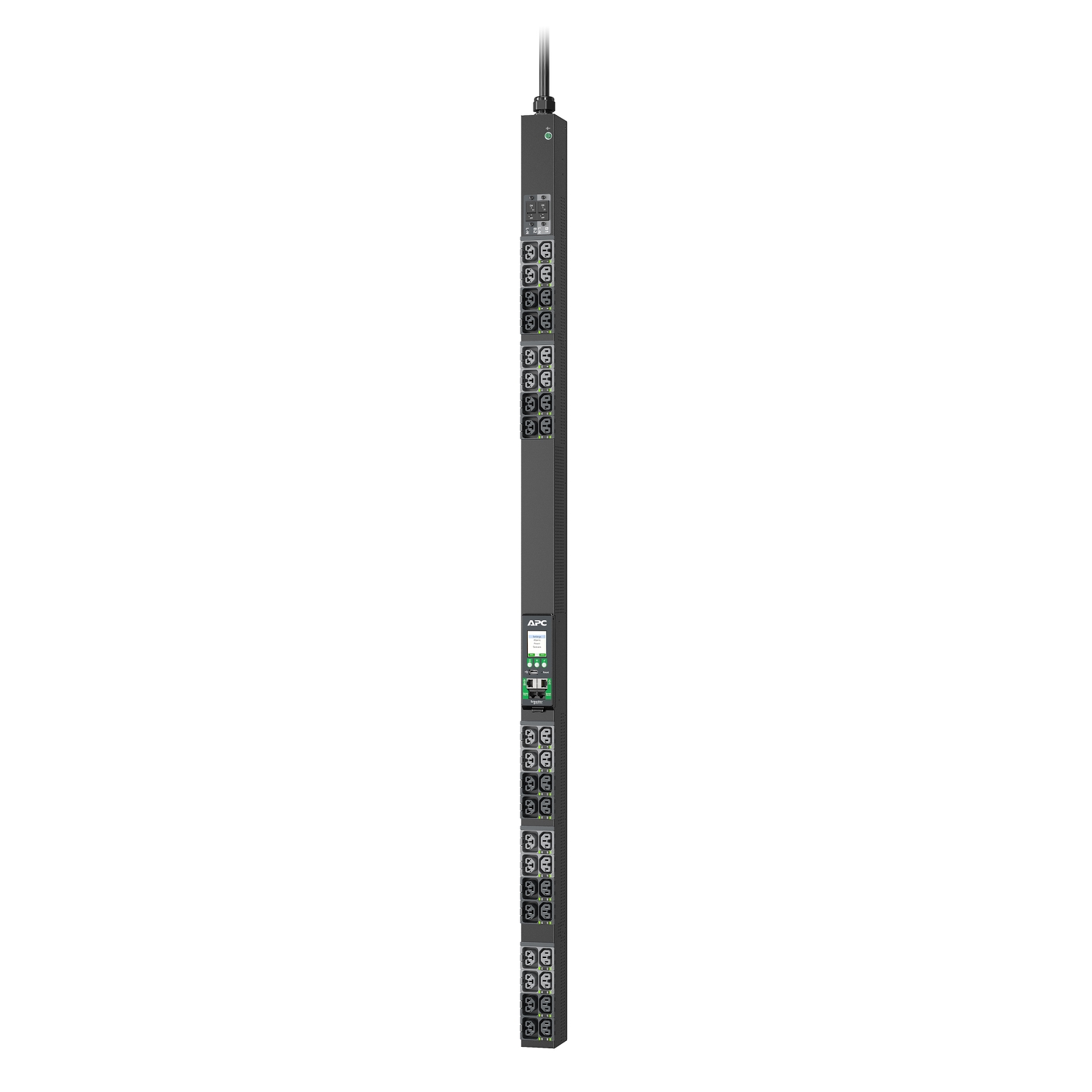

APDU10150SW
NetShelter Rack PDU Advanced, Switched, 7.4kW, 1Phase
APDU10150SW 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher
規格
主要規格
| Product or component type | PDU |
|---|---|
| Main Input Voltage | 230 V 1 phase |
| Input current limits | 32 A |
| Network frequency | 50/60 Hz |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60309 32 A 2P + PE |
| Number of power socket outlets | 20 C13/C15/C19/C21 ; 20C13/C15 |
| Load capacity | 7400 VA |
| [In] rated current | 32 A |
| permissible voltage | 200…240 V |
| Max current draw | 32 A |
| PDU type | Switched |
| Protection type | Circuit breaker |
| Number of rack unit | 0U |
| Cable length | 3.0 m |
補充規格
| Mounting location | Side |
|---|---|
| Mounting mode | Rack-mounted |
| Mounting position | Vertical |
| Communication port protocol | 1000BASE-T; 10/100BASE-T |
| Height | 1490 mm |
| Width | 56 mm |
| Depth | 75 mm |
| Net weight | 7.4 kg |
