描述
APDU11150SM

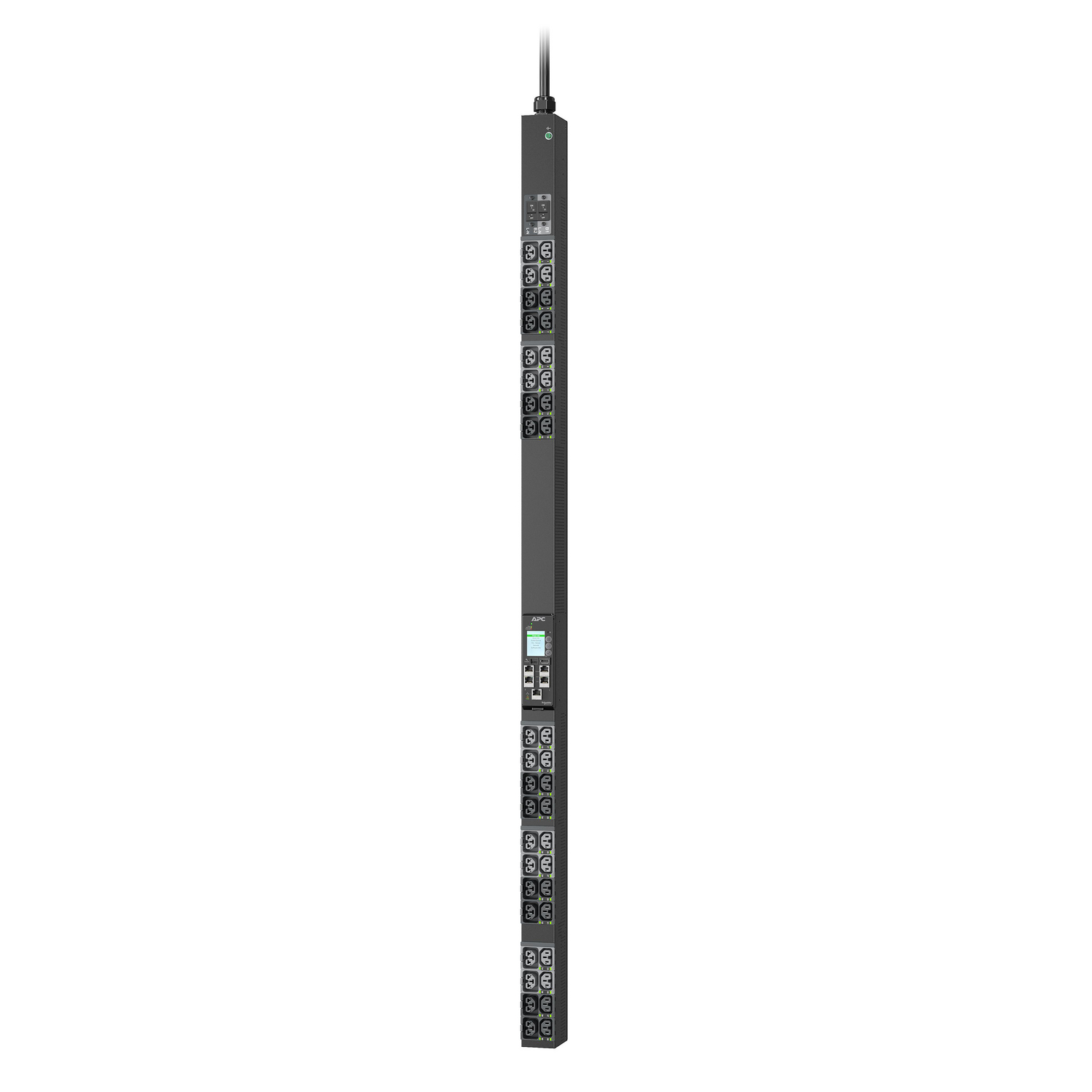

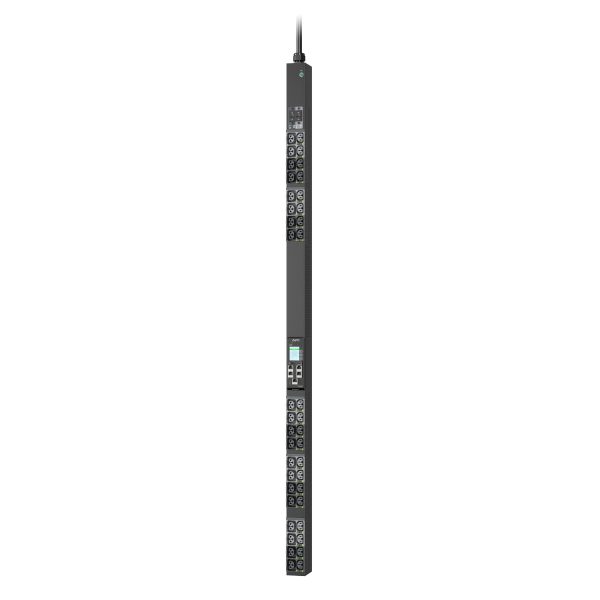

NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet, 7.4kW, 1Phase
APDU11150SM 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments
規格
主要規格
| Product or component type | PDU |
|---|---|
| Main Input Voltage | 230 V 1 phase |
| Input current limits | 32 A |
| Network frequency | 50/60 Hz |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60309 32 A 2P + PE |
| Number of power socket outlets | 20 C13/C15/C19/C21 ; 20C13/C15 |
| Load capacity | 7400 VA |
| [In] rated current | 32 A |
| permissible voltage | 200…240 V |
| Max current draw | 32 A |
| PDU type | Switched metered outlet |
| Protection type | Circuit breaker |
| Number of rack unit | 0U |
| Cable length | 3 m |
補充規格
| Mounting location | Side |
|---|---|
| Mounting mode | Rack-mounted |
| Mounting position | Vertical |
| Communication port protocol | 1000BASE-T; 10/100BASE-T |
| Colour | Black |
| Height | 1490 mm |
| Width | 56 mm |
| Depth | 75 mm |
| Net weight | 7.5 kg |
