描述
AR100

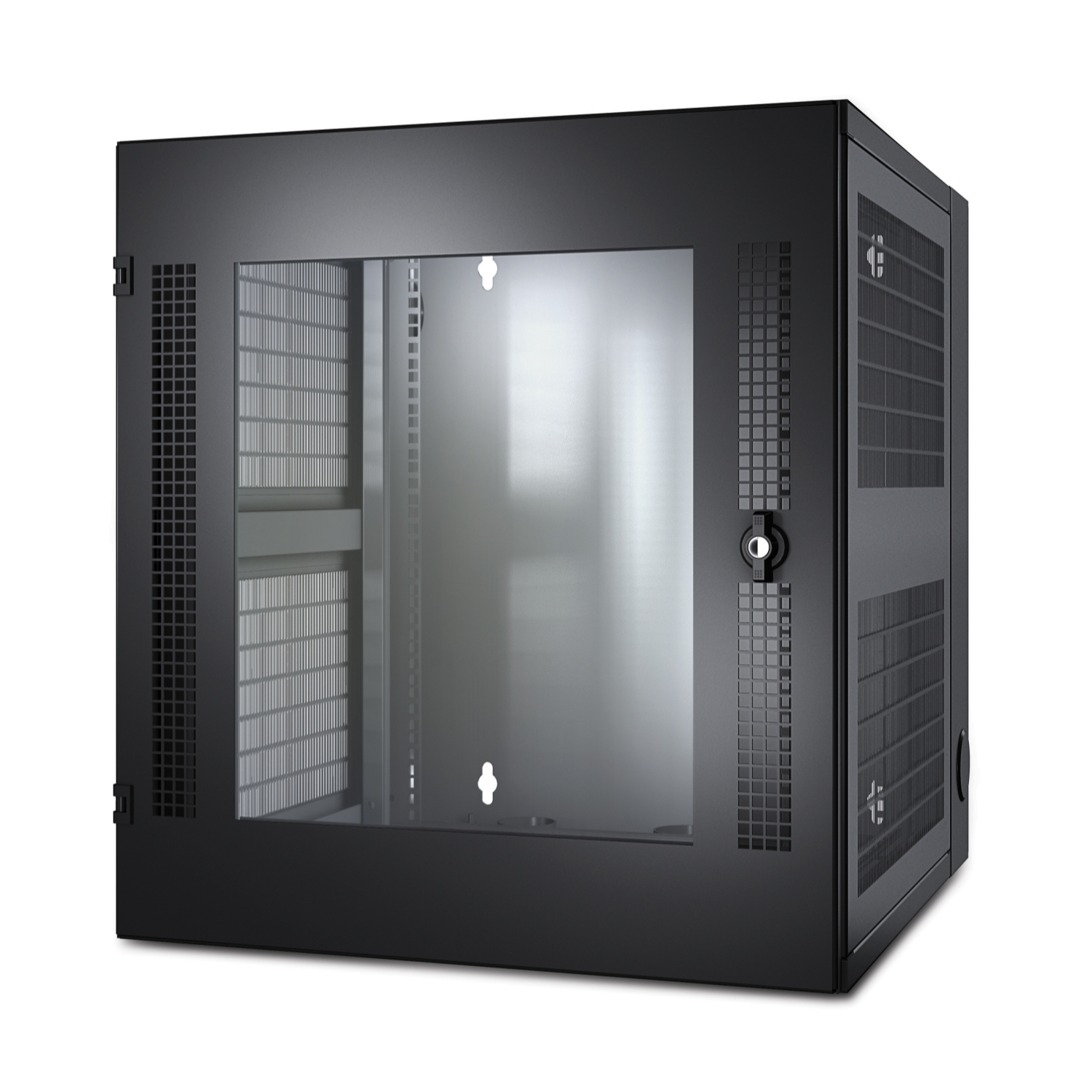

NetShelter 13U Wallmount Rack Cabinet Glass Door Double Hinged Server Depth
AR100 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, glass door, 5 year APC warranty
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 13U |
| Rack width | 19" |
| Permanent permissible load | 90.7 kg static |
| Provided equipment | Key(s); User manual; Wall-mounting template |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Maximum mounting depth | 482.6 mm |
| Colour | Black |
| Marking | 16 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 13 gauge rear door; 18 gauge roof; 18 gauge side panels |
| Height | 663 mm |
| Width | 584 mm |
| Depth | 631 mm |
| Net weight | 42.73 kg |
