描述
AR106

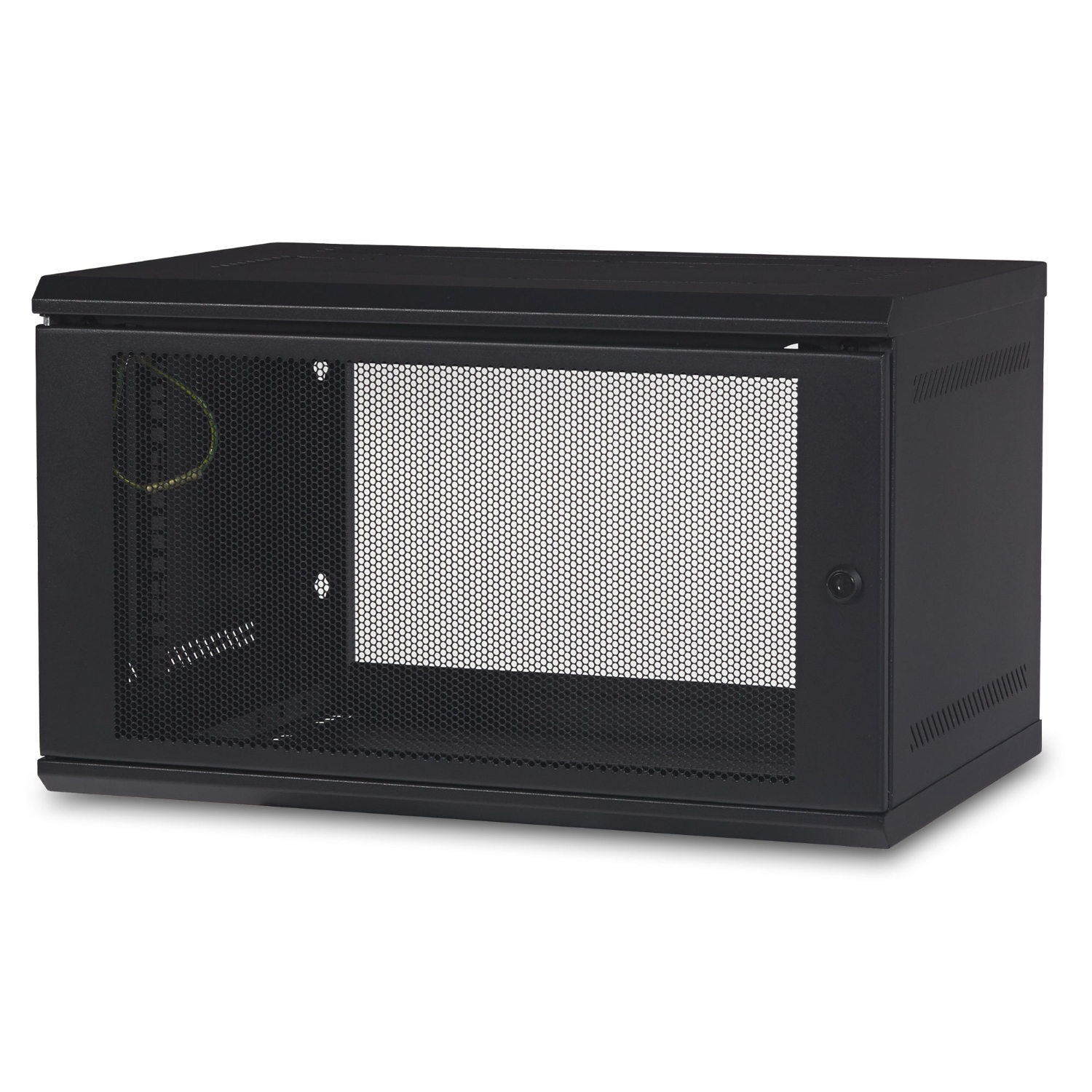

NetShelter 6U Wallmount Rack Enclosure Cabinet, Single Hinged, Switch Depth, Unassembled
AR106 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up to 60% less space than assembled alternatives. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top/bottom mounted. Top/bottom feature knockouts 1/2U of mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19"" rack width, ships unassembled, 5 year APC warranty
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 6U |
| Rack width | 19" |
| Permanent permissible load | 90.7 kg static |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Mounting support | Wall |
| Minimum mounting depth | 226.1 mm |
| Maximum mounting depth | 328.9 mm |
| Colour | Black |
| Height | 356 mm |
| Width | 599 mm |
| Depth | 400 mm |
| Net weight | 9.39 kg |
