描述
AR3100W

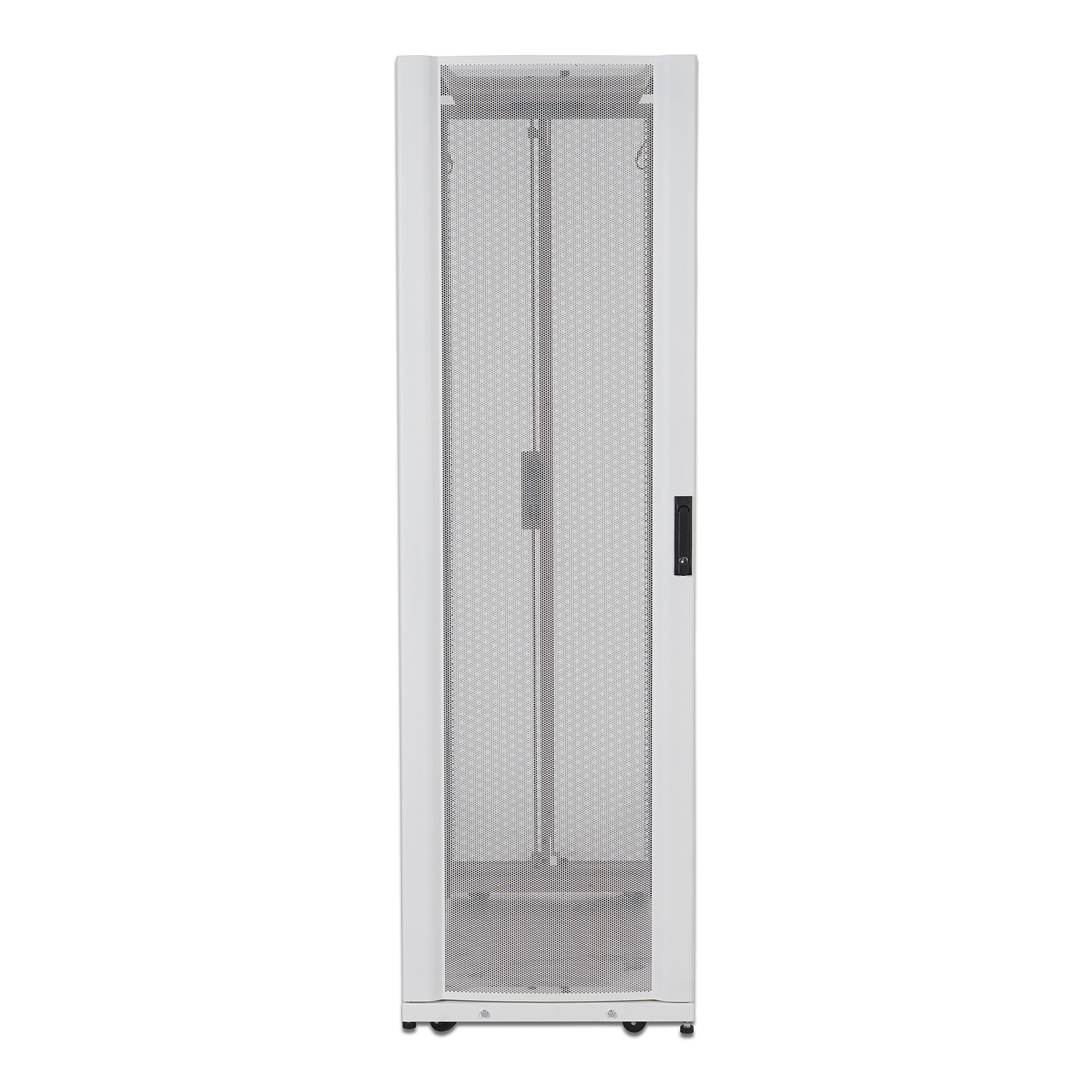

NetShelter SX, Server Rack Enclosure, 42U, White
AR3100W 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600mm centers or 24in centers depending upon the floor layout. Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside.
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Rack width | 19" |
| Permanent permissible load | 1020.6 kg dynamic; 1701.0 kg static |
| Provided equipment | Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 190.5 mm |
| Maximum mounting depth | 914.9 mm |
| Colour | White |
| Marking | 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 18 gauge rear door; 18 gauge roof; 18 gauge side panels |
| Height | 1991 mm |
| Width | 600 mm |
| Depth | 1070 mm |
| Net weight | 125.09 kg |
