描述
AR3140

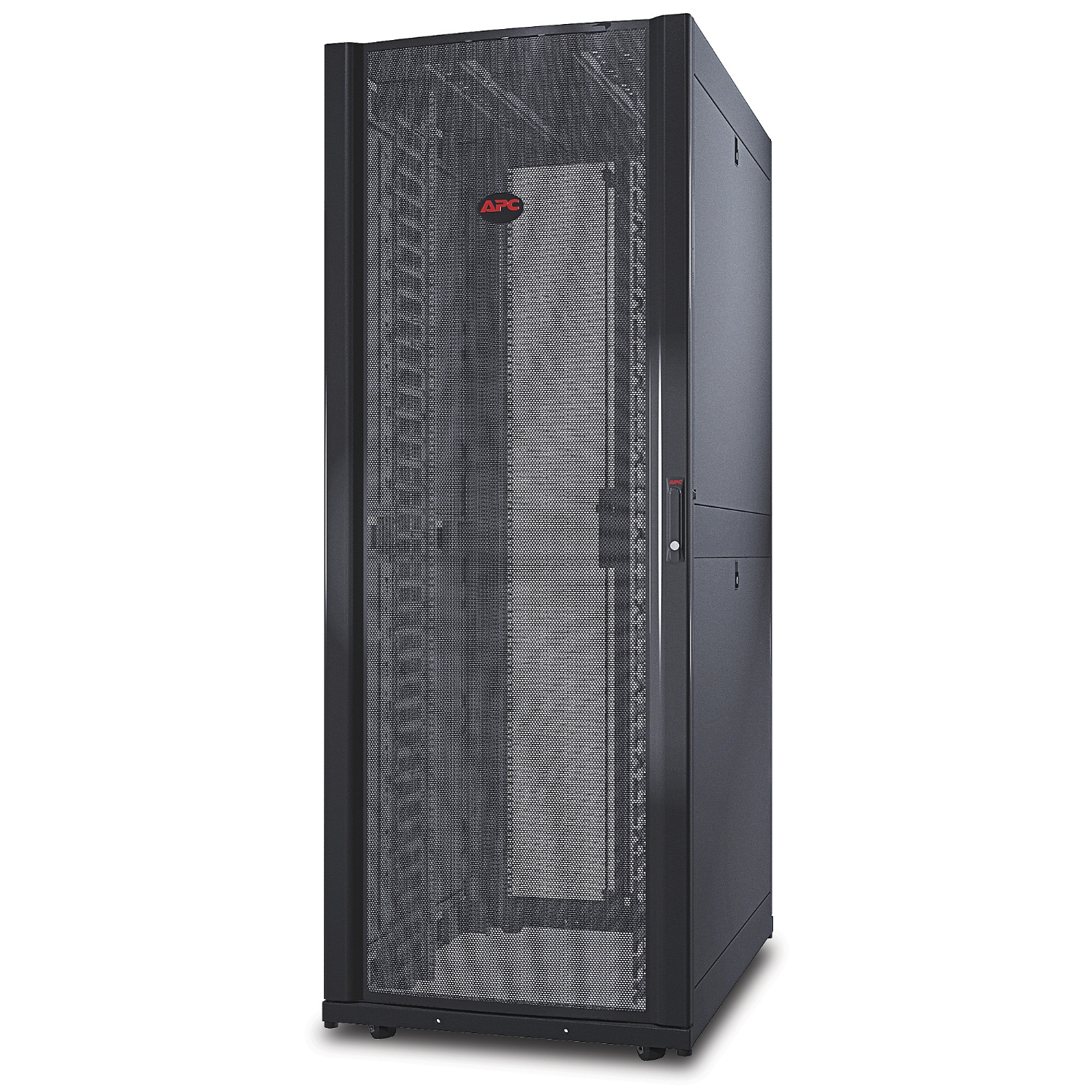

NetShelter SX, Networking Rack Enclosure, 42U, Black
AR3140 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
With over 1 million units sold and 15 years of customer feedback, the NetShelter SX rack handles a wide array of uses from high density servers to edge computing. This networking rack is highly configurable and is especially built for high density networking applications. Integrated cable managers, optimized cable access, and removable roof provide support for large cable bundles. Reversible, curved front door provides 69% ventilation, and lockable doors and split side panels help prevent unauthorized access. When combined with the Side Airflow Duct Kit, the rack completely isolates cold air intake and hot air exhaust. Create a full solution with UPS, PDU, cooling, keycard access, rack sensors or remote monitoring using Row Designer or Local Edge Configurator. This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer’s warranty.
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Rack width | 19" |
| Permanent permissible load | 1020.6 kg dynamic; 1701.0 kg static |
| Provided equipment | Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels; Vertical cable managers |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 279.4 mm |
| Maximum mounting depth | 819.2 mm |
| Colour | Black |
| Marking | 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels |
| Height | 1991 mm |
| Width | 750 mm |
| Depth | 1070 mm |
| Net weight | 155.95 kg |
