描述
BGM2200-UK

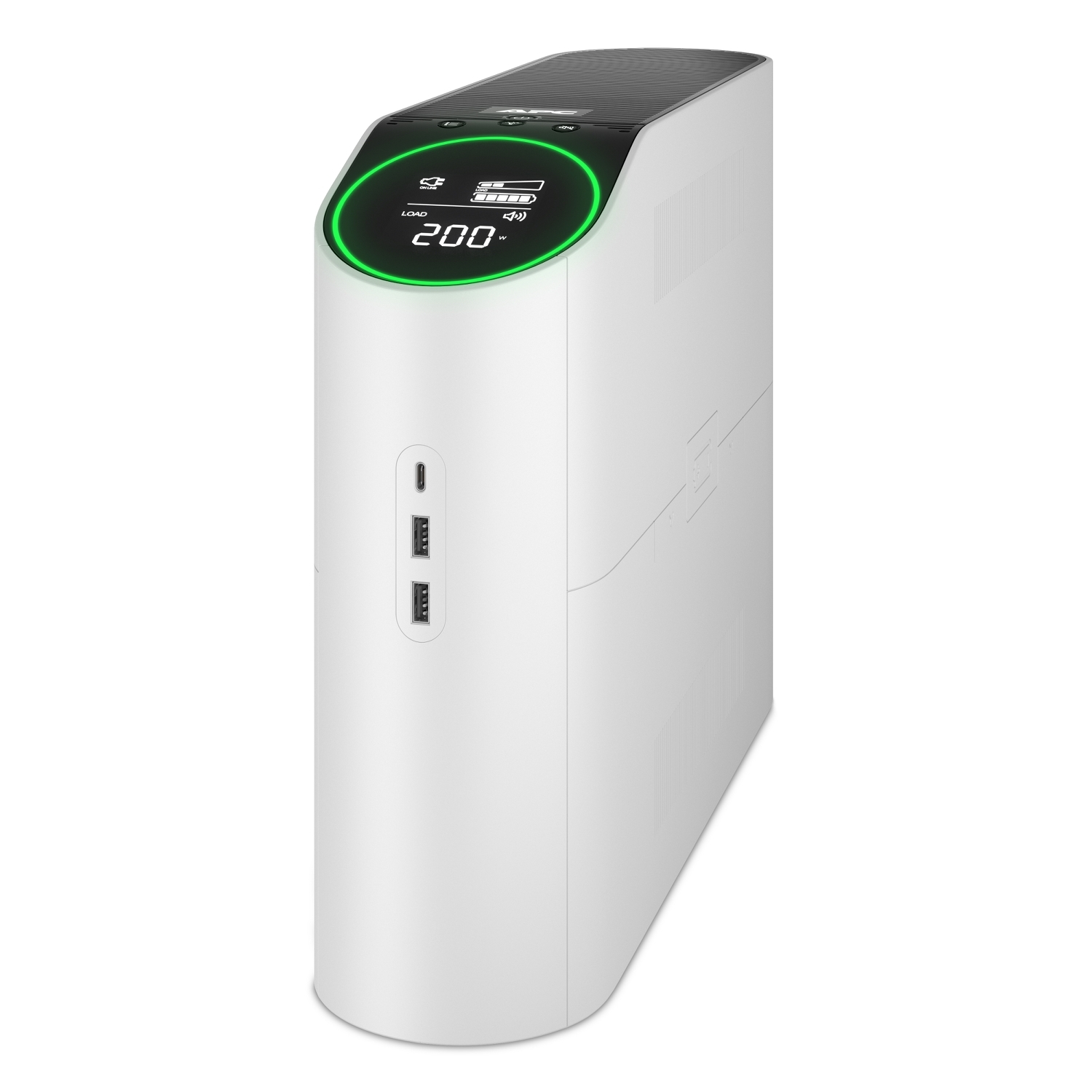

Back-UPS Pro for Gaming, 2200VA/1320W, Tower, 230V
BGM2200-UK 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Back-UPS Pro offers premium power protection for high performance gaming consoles and PC, routers/modems, and gaming accessories. The 2200VA/1320W tower UPS has 4 total outlets, all of of which are battery back up and surge protection. It has a surge energy rating of 1080 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. It comes with PowerChute Serial Shutdown, an easy-to-use safe system shutdown software with power and energy management features. This UPS has a 2 year repair or replace warranty, 3 year repair or replace for European Union countries only. It has 3 USB ports (Type A + C) for smart charging of personal devices.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 230 V |
| Input connection | BS 1363 British |
| Maximum input current | 12 A |
| Input harmonic distortion | Less than 3 % for full load |
| Input protection | Circuit breaker and fuse |
| Switching current capacity | 15 A |
| Plug standard | UK |
| Efficiency at full load | 168…302 V |
| Input frequency | 50/60 Hz +/- 3 Hz |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 1320 W |
| Rated power in VA | 2200 VA |
| Output connection | 2 BS 1363; 2 IEC 60320 C13 |
| Type of USB power supply | USB type A + C |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1320 W |
| Transfer time | 8 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Full load runtime | 00:30:00 |
| Half load runtime | 00:04:19 |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC216 |
補充規格
| Battery type | Lead-acid internal included |
|---|---|
| Control panel | Multifunction LCD status and control console |
| Free slot | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Surge energy rating | 1080 J |
| Noise filtering | Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Color | White |
| Height | 292.1 mm |
| Width | 104.14 mm |
| Depth | 408.94 mm |
| Product weight | 12.3 kg |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Vertical |
| Mounting mode | Tower |
| Number of power module free slots | 0 |
| Number of preinstalled power modules | 0 |
| Additional specification | Gaming performance |
| Redundant | No |
| Range of product | Back-UPS Pro |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; CB |
|---|---|
| Equipment protection policy | Lifetime : 50000 euros |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…3048 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 24 V |
| Included battery module | 1 |
| Empty battery slot | 0 |
| Typical recharge time | 16 h |
| RBC quantity | 1 |
| Overcurrent protection | 13 A |
| Battery life | 3…5 year(s) |
| Battery charging power | 12 W rated |
