描述

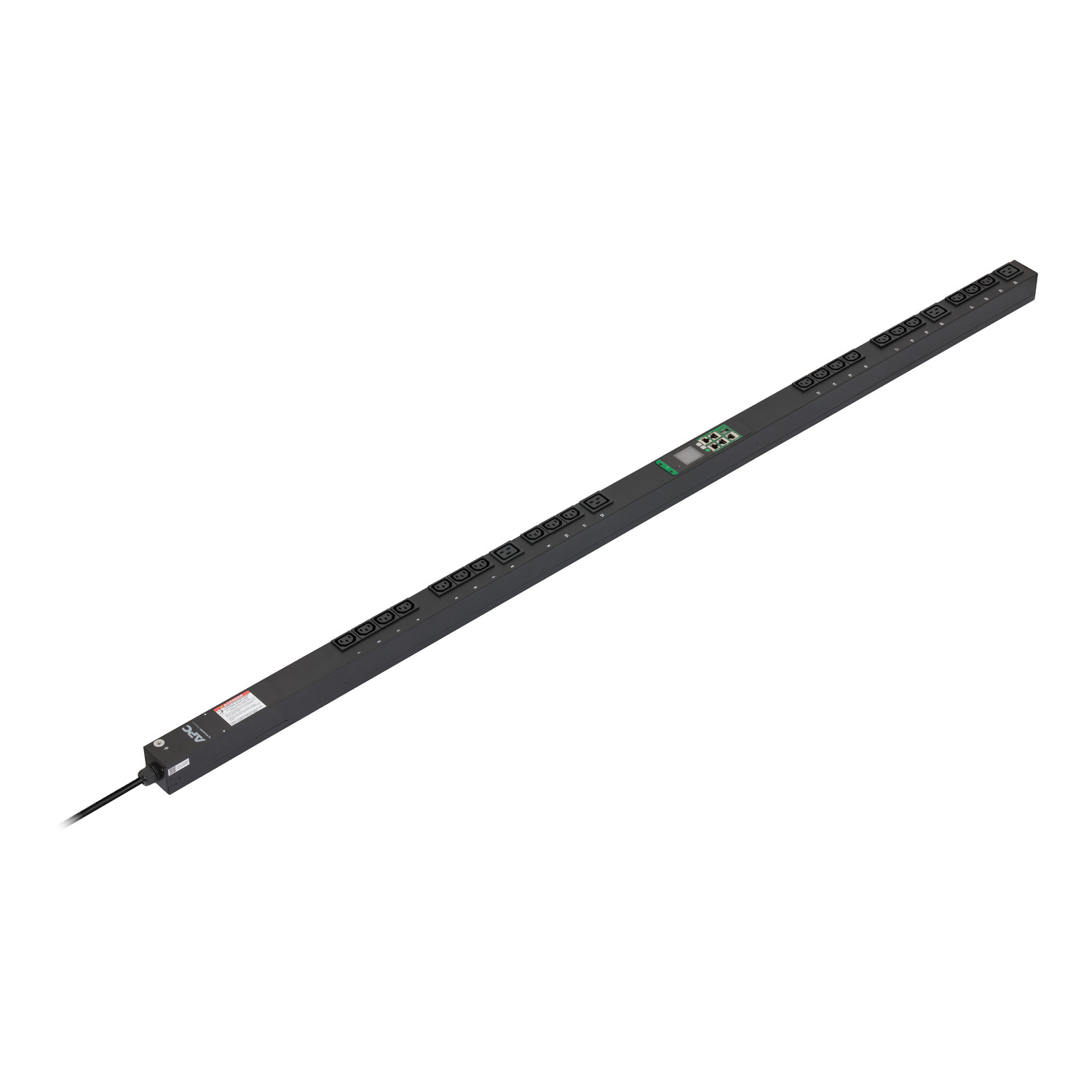

EPDU1116MBO
Easy Rack PDU, Metered Outlet, 0U, 1 Phase
EPDU1116MBO 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Product or component type | PDU |
|---|---|
| Main Input Voltage | 208 V; 200 V; 230 V |
| Input current limits | 16 A |
| Network frequency | 50/60 Hz |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60309 16 A 2P + E |
| Number of power socket outlets | 20 IEC 60320 C13 ; 4 IEC 60320 C19 |
| Load capacity | 3680 VA |
| [In] rated current | 16 A |
| permissible voltage | 200…240 V |
| Max current draw | 16 A |
| Max line current | 16 A |
| PDU type | Metered outlet |
| Protection type | Without circuit breaker |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Cable length | 3 m |
| Provided equipment | Installation guide; Safety guide; Rack mounting brackets |
補充規格
| Mounting location | Side |
|---|---|
| Mounting mode | Not rack-mountable |
| Mounting position | Vertical |
| Communication port protocol | SNMP |
| Height | 1800 mm |
| Width | 55 mm |
| Depth | 56 mm |
| Net weight | 6.37 kg |
