描述

EPDU1132B

Easy Rack PDU, Basic, 0U, 1 Phase

EPDU1132B 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

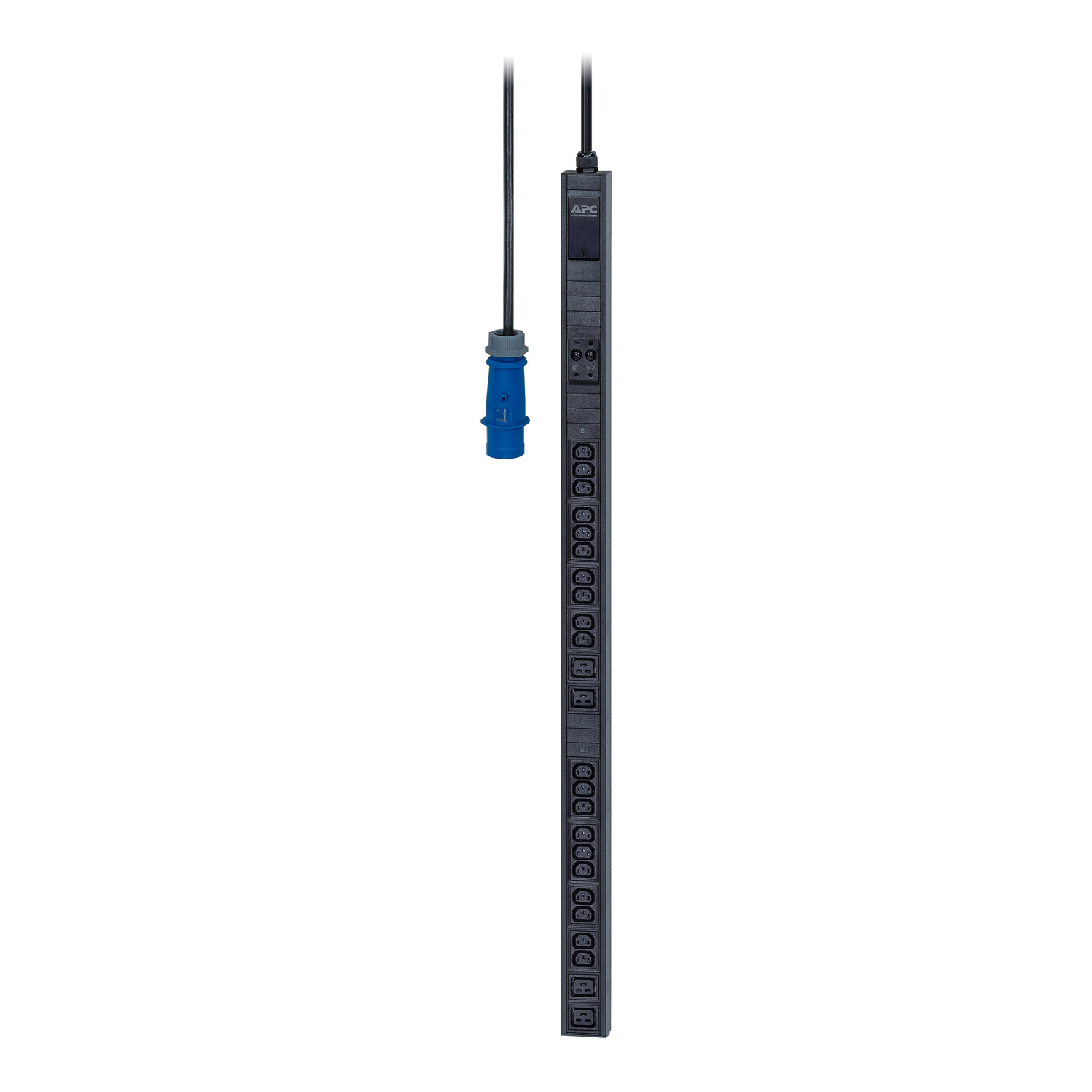

APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1132B has IEC 309 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

規格

主要規格

Product or component type	PDU
Main Input Voltage	200 V; 208 V; 230 V
Input current limits	32 A
Network frequency	50/60 Hz
Main Output Voltage	230 V
Input Connection Type	IEC 60309 32 A 2P + E
Number of power socket outlets	20 IEC 60320 C13 ; 4 IEC 60320 C19
Load capacity	7360 VA
Max current draw	32 A
PDU type	Basic
Number of rack unit	0U
Number of cables	1
Cable length	2.99 m
Provided equipment	Installation guide; Toolless mounting kit; Vertical mounting brackets
