描述

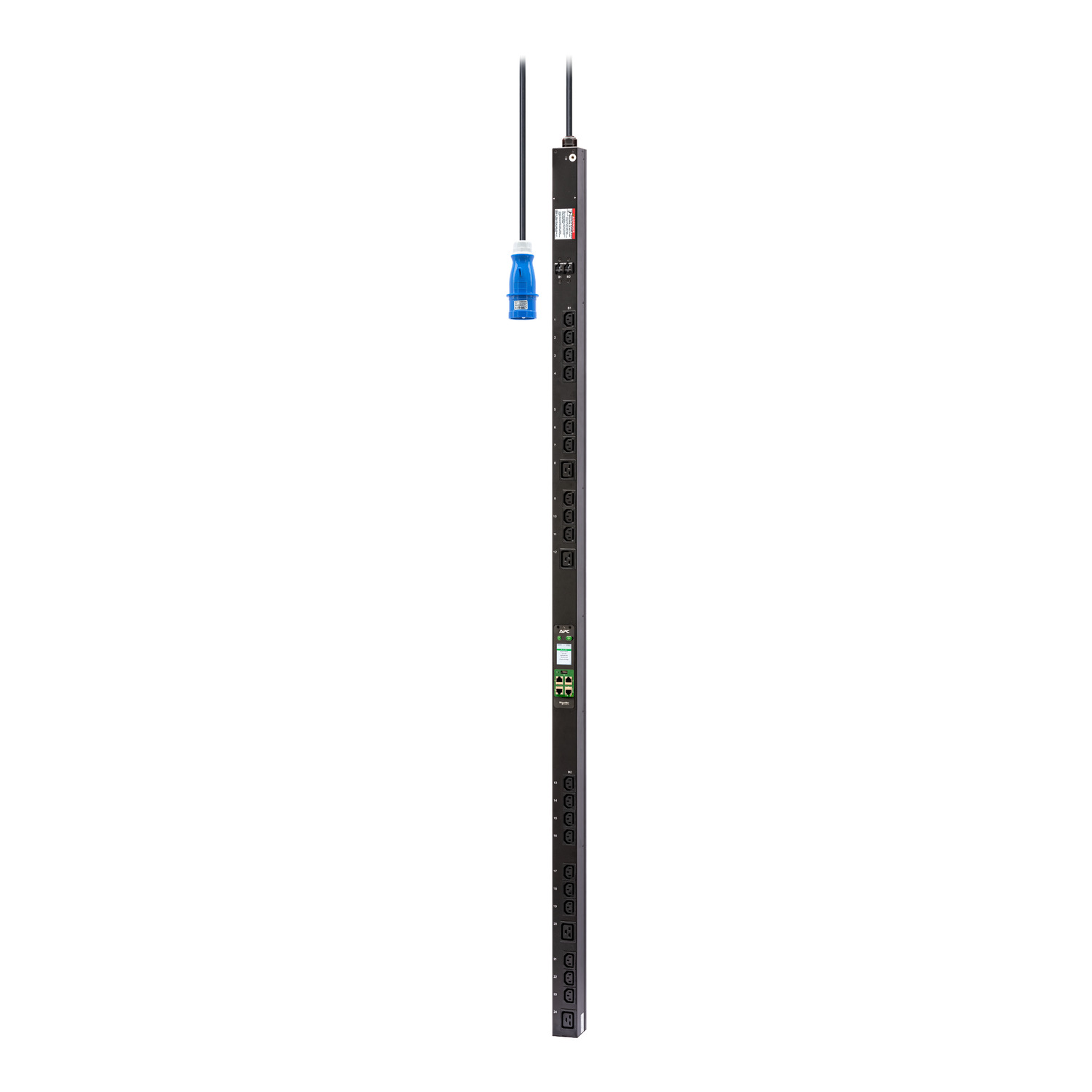

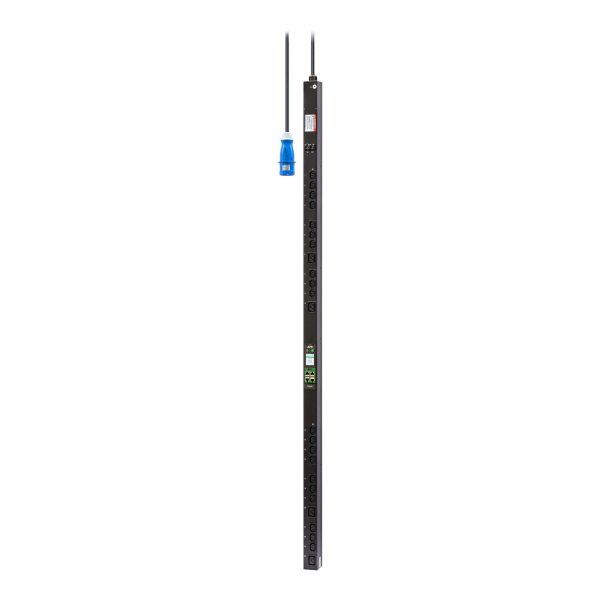

EPDU2132MBO
Easy Rack PDU, Metered Outlet, 0U, 1 Phase
EPDU2132MBO 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Easy Metered-by-outlet rack PDU EPDU2132MBO provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2132MB is designed for single phase applications of upto 7.4kw and industry standards of 1% metering accuracy. This comes with IEC 6393 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 5% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +5°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.
規格
主要規格
| Product or component type | PDU |
|---|---|
| Main Input Voltage | 200 V |
| Input current limits | 32 A |
| Network frequency | 50/60 Hz |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60309 32 A 2P + E |
| Number of power socket outlets | 20 IEC 60320 C13 |
| Load capacity | 7360 VA |
| [In] rated current | 32 A |
| permissible voltage | 200…240 V |
| Max current draw | 32 A |
| Max line current | 32 A |
| PDU type | Metered outlet |
| Protection type | Circuit breaker |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Cable length | 3 m |
| Provided equipment | Installation guide |
補充規格
| Mounting location | Side |
|---|---|
| Mounting mode | Not rack-mountable |
| Mounting position | Vertical |
| Communication port protocol | SNMP |
| Height | 1800 mm |
| Width | 55 mm |
| Depth | 56 mm |
| Net weight | 7.12 kg |
