描述

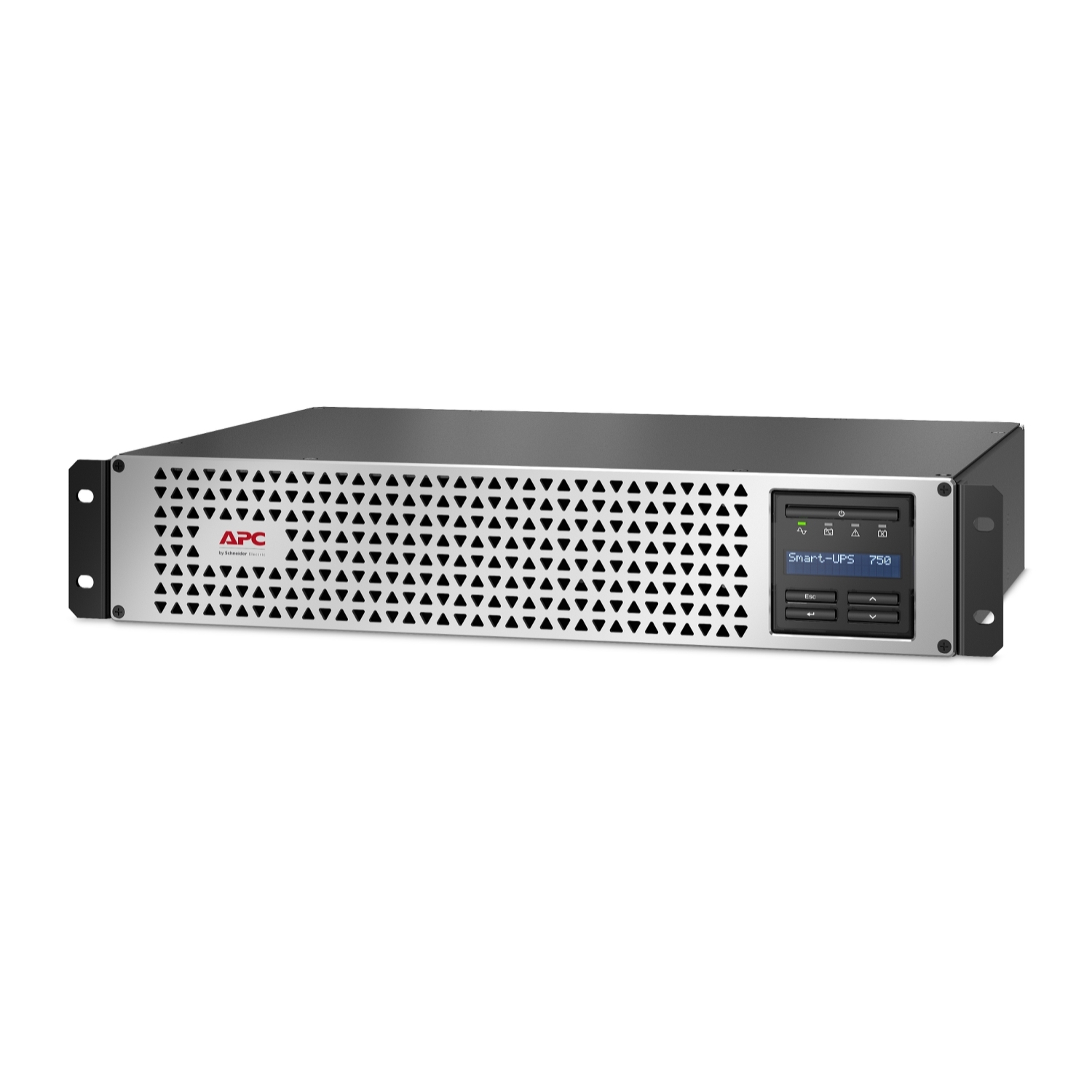

SMTL750RMI2UC
Smart-UPS, Line Interactive, 750VA, Lithium-ion
SMTL750RMI2UC 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6 IEC 320 C13 outlets and 2 jumper cables. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | IEC 60320 C14 |
| Input protection | Circuit breaker |
| Efficiency at full load | 151…302 V adjustable; 160…286 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 600 W |
| Rated power in VA | 750 VA |
| Output connection | 6 IEC 60320 C13; 2 IEC Jumpers |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 600 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
補充規格
| Battery type | Li-Ion (Lithium-Ion) internal included |
|---|---|
| Control panel | Multifunction LCD status and control console |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm |
| UPS connectivity | Serial port; USB port; SmartConnect port; Available expansion slot |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Surge energy rating | 645 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Color | Black with silver front bezel |
| Height | 86 mm |
| Width | 438 mm |
| Depth | 318 mm |
| Product weight | 15.4 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | USB cable; Ethernet patch cable; Rack mounting brackets; Screw; Washer; Rack mounting support rails |
| Additional specification | Cloud-enabled monitoring |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; EAC; UK PSTI |
|---|---|
| Standard | EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…7620 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 41 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Battery graph comment | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extendable runtime | 0 |
| Typical recharge time | 3 h |
| Battery design life | 8…10 year(s) |
| Battery charging power | 50 W rated |
