描述

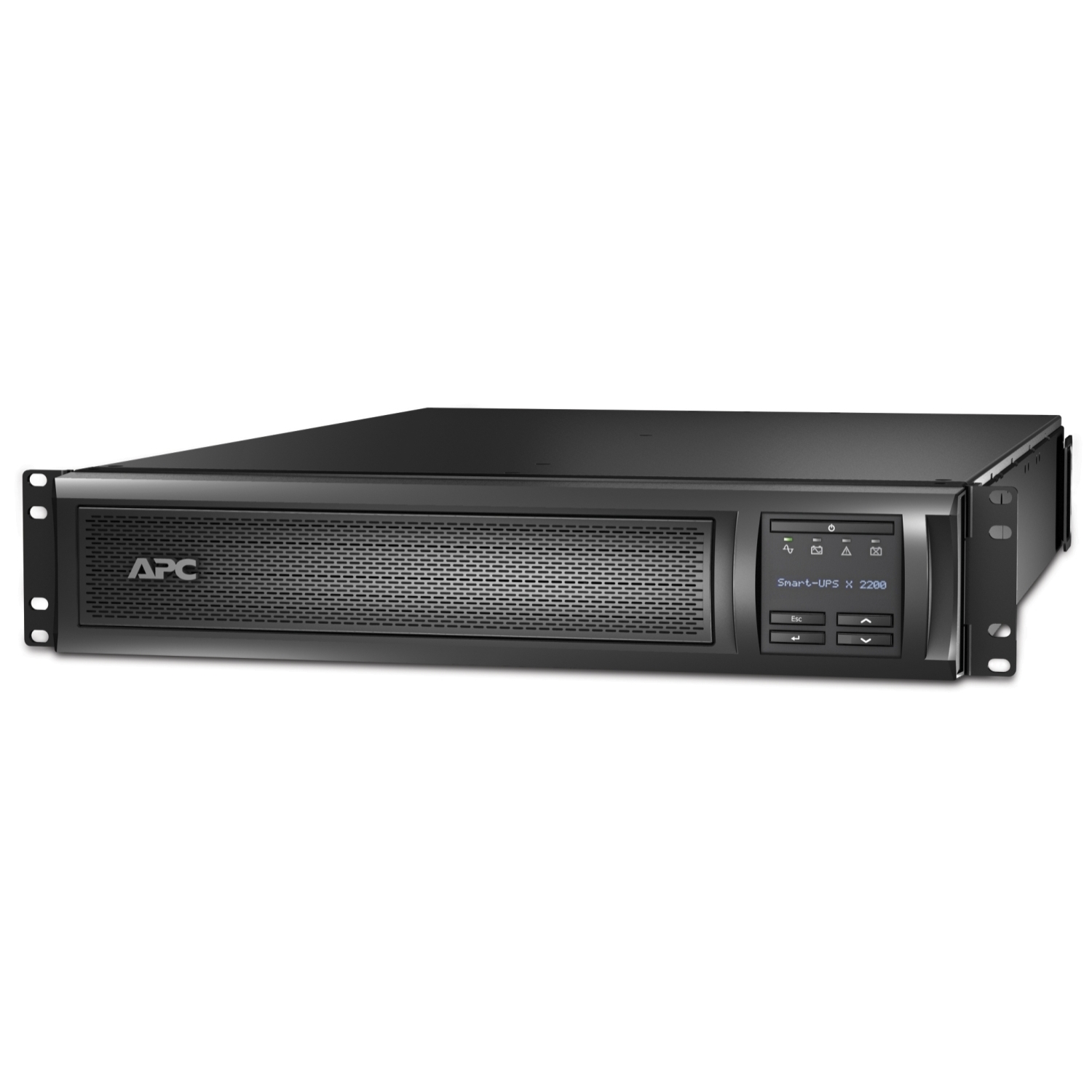

SMX2200R2HVNC
Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U
SMX2200R2HVNC 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
規格
主要規格
| Main input voltage | 208 V AC 1 phase; 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | BS 1363 British; IEC 60320 C20; CEE 7/7 |
| Efficiency at full load | 140…280 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 208 V AC 1 phase; 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Output connection | 8 IEC 60320 C13; 2 IEC Jumpers; 1 IEC 60320 C19 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC117 |
補充規格
| Battery type | Lead-acid internal included |
|---|---|
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators; Multifunction LCD status and control console |
| Emergency power off | Yes |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Software compatibility | IT Expert; Secure NMC System; PowerChute Network Shutdown; Data Centre Expert; PowerChute Serial Shutdown |
| UPS connectivity | Serial port; USB port; Pre-installed network management card 3 |
| Surge energy rating | 645 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Color | Black |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 667 mm |
| Product weight | 37.24 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software; Documentation CD; Installation guide; Network management card; Rack mounting support rails; Smart UPS signalling RS-232 cable; Temperature probe; USB cable |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Extended run |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; EAC; IRAM; RCM; TISI; VDE; UK PSTI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 55 dBA |
| Heat dissipation | 150 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 233 W rated |
