描述

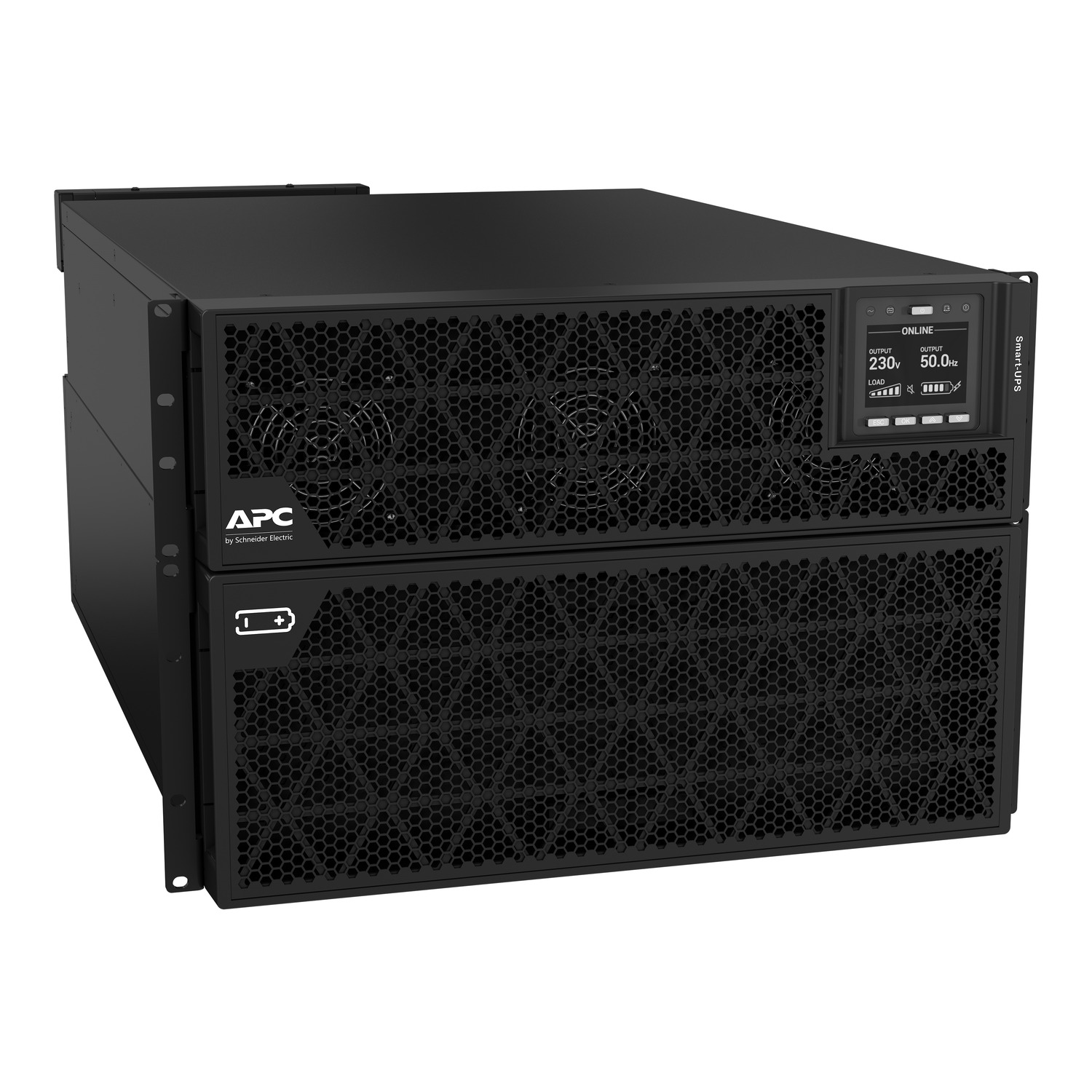

SRTG15KXLI
Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V…415V
SRTG15KXLI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
規格
主要規格
| Main input voltage | 230 V AC 1 phase; 400 V AC 3 phases |
|---|---|
| Other input voltage | 380…415 V; 220…240 V |
| Maximum input current | 66 A |
| Input harmonic distortion | Less than 5 % for full load |
| Load power factor | From 0.9 leading to 1 lagging |
| Switching current capacity | 100 A |
| Efficiency at full load | 160…285 V full load; 100…285 V half load |
| Input connection | 1 hard wire 5 wire (3P + N + E); 1 hard wire 3-wire (1P + N + E) |
| Input frequency | 40…70 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase; 400 V AC 3 phases |
| Other output voltage | 230 V |
| Rated power in W | 15000 W |
| Rated power in VA | 15000 VA |
| Output connection | 1 IEC 60320 |
| Output connection | Hard wire 5-wire (3P + N + E) for 1 zone(s); Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 15000 VA |
| Maximum configurable power in W | 15000 W |
| Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 94.5 % |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Replacement battery | APCRBC172 |
補充規格
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage; Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid external included |
| Emergency power off | Yes |
| Free slot | 0 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port; Pre-installed network management card 3 |
| Surge energy rating | 600 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 7U |
| Color | Black (RAL 9005) |
| Height | 306 mm |
| Width | 440 mm |
| Depth | 835 mm |
| Product weight | 142.5 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted with kit sold separately |
| Provided equipment | 1 x USB cable; 1 x RJ45 cable; 2 x rack mounting brackets; 2 x stabilization/wall mounting feet; 2 x installation manual; 1 x C13-C14 power cord; 1 x external battery pack; 1 x battery cable |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; UKCA; TISI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15000 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 58 dBA |
| Heat dissipation | 2866 Btu/h |
| Operating altitude | 0…3000 m |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | +/- 192 V |
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 4 h |
| RBC quantity | 2 |
| Battery life | 3…5 year(s) |
| Battery charging power | 2160 W rated |
