描述
SRTL2K2RM1UINC

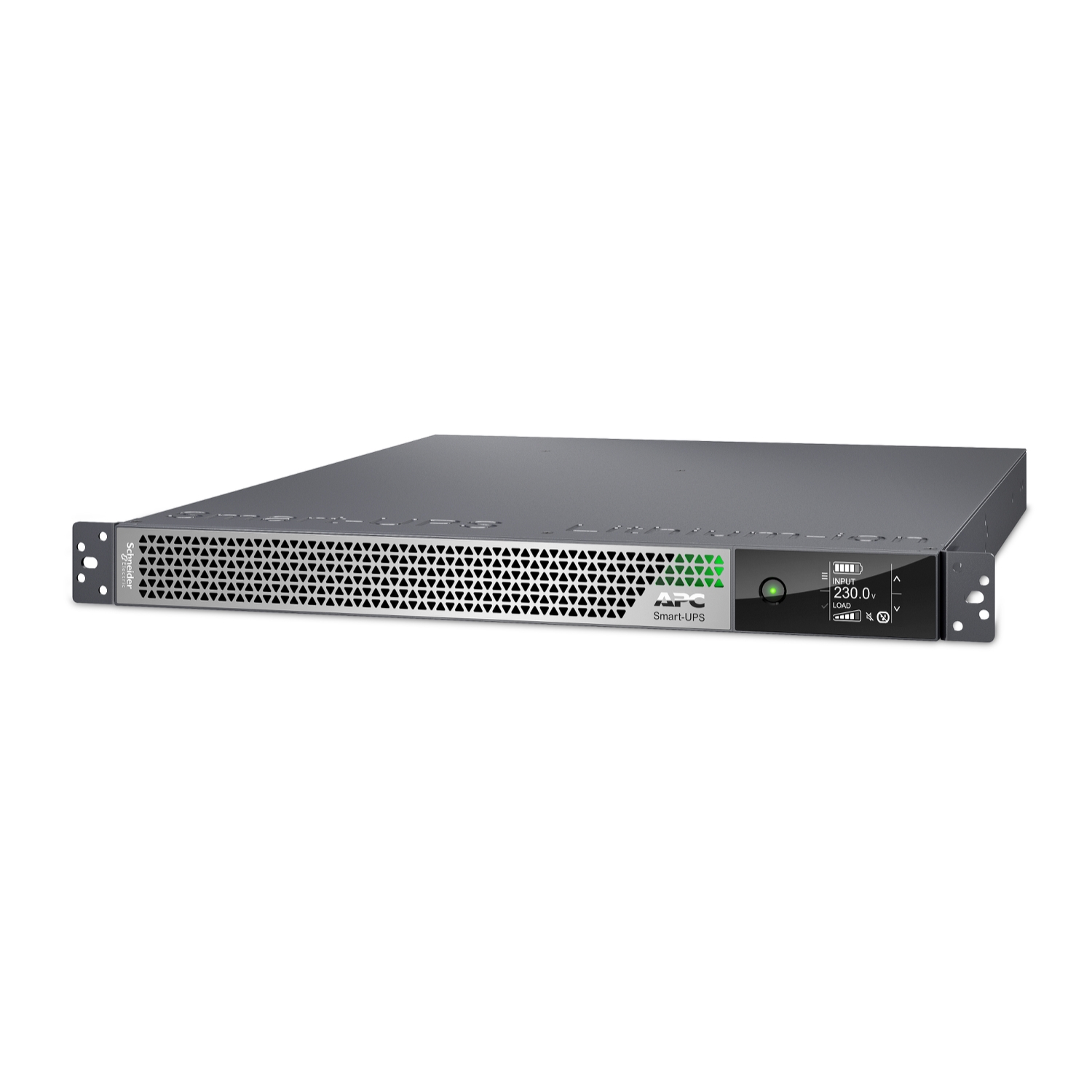

Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U
SRTL2K2RM1UINC 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 230 V |
| Input connection | BS 1363 British; IEC 60320 C20; CEE 7/7 |
| Efficiency at full load | 160…275 V adjustable 220…240 V AC |
| Input frequency | 50/60 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 230 V |
| Rated power in W | 2200 W |
| Rated power in VA | 2200 VA |
| Output connection | 3 IEC 60320 C13; 2 IEC 60320 C19 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 2200 W |
| Output harmonic distortion | < 2% at 100% linear load and < 5% at 100% non-linear load |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 97 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC173-LI |
補充規格
| Battery type | Li-Ion (Lithium-Ion) internal included |
|---|---|
| Control panel | Touch screen LCD user interface |
| Emergency power off | Yes |
| Preinstalled device | Network management card with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port; USB port; Embedded network management card 3 |
| Surge energy rating | 1600 J |
| Number of rack unit | 1U |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Color | Silver grey |
| Height | 43 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Product weight | 15.9 kg |
| Mounting preference | No preference |
| Mounting mode | Rack/tower convertible with kit |
| Two post mountable | 1 |
| USB compatible | Yes |
| Mounting position | Horizontal; Vertical |
| Mounting mode | Rack/tower convertible with included kit |
| Provided equipment | RJ45 cable; Rack mounting brackets; Network cable; Terminal; Stabilization feet; Safety guide; Rail extension; Washer; USB cable; Screws |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS Ultra |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; EAC; RCM; VDE; UKCA; UK PSTI |
|---|---|
| Marking | CE Mark |
| Standard | EN/IEC 62040-1; FCC CFR 47 part 15 class A; IEC 62040-2; EN/IEC 61000-4-8; EN/IEC 61000-4-6 level 3; EN/IEC 61000-4-5 level 3; EN/IEC 61000-4-4 level 4 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dB |
| Heat dissipation | 325 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Battery voltage | 50 V |
| Extendable runtime | 1 |
| Typical recharge time | 1.5 h |
| RBC quantity | 1 |
| Battery design life | 8…10 year(s) |
| Battery life | 8…10 year(s) |
| Battery charging power | 448 W rated |
