描述

SU620INET

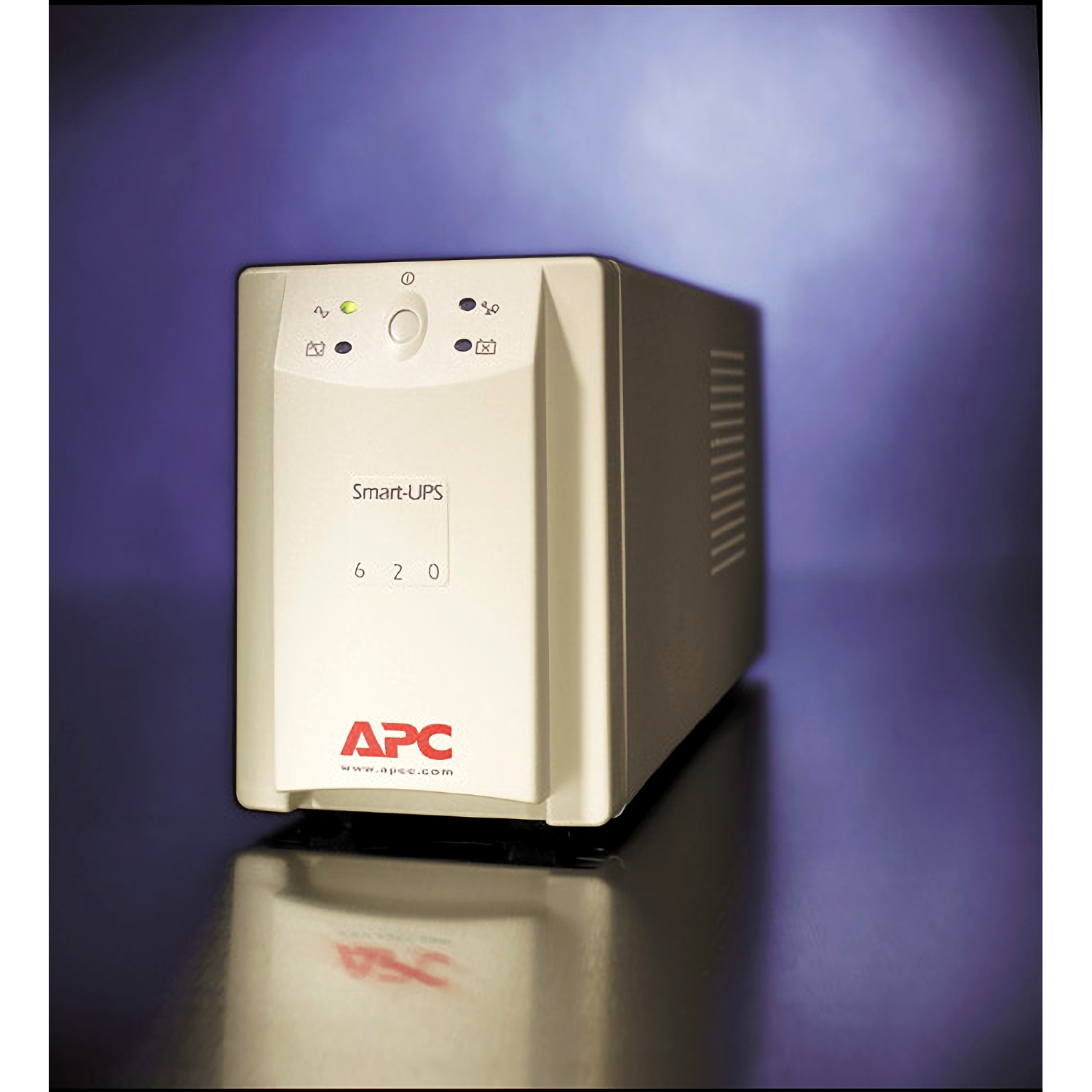

Smart-UPS 620VA 230V

SU620INET 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Input connection	IEC 60320 C14
Efficiency at full load	151…302 V adjustable; 160…286 V
Input frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V
Rated power in W	390 W
Rated power in VA	620 VA
Output connection	3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC Jumpers
Maximum configurable power in VA	620 VA
Maximum configurable power in W	390 W
Transfer time	2 ms typical
UPS topology	Line interactive
Replacement battery	RBC4

Free slot	0
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Data line protection	RJ45 10/100 Base-T Ethernet protection
Surge energy rating	320 J
Noise filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Color	Beige
Height	16.76 cm
Width	11.94 cm
Depth	36.83 cm
Product weight	12.27 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	No
Provided equipment	CD with software; Smart UPS signalling RS-232 cable; User manual
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Product or component type	Uninterruptible power supply (UPS)

Product certification	CE; GOST; VDE
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	70 Btu/h
Operating altitude	0…10000 ft
