BELDEN 6101UE
Security & Sound, 3 Conductor 14 AWG BC, CL2P
Product Description

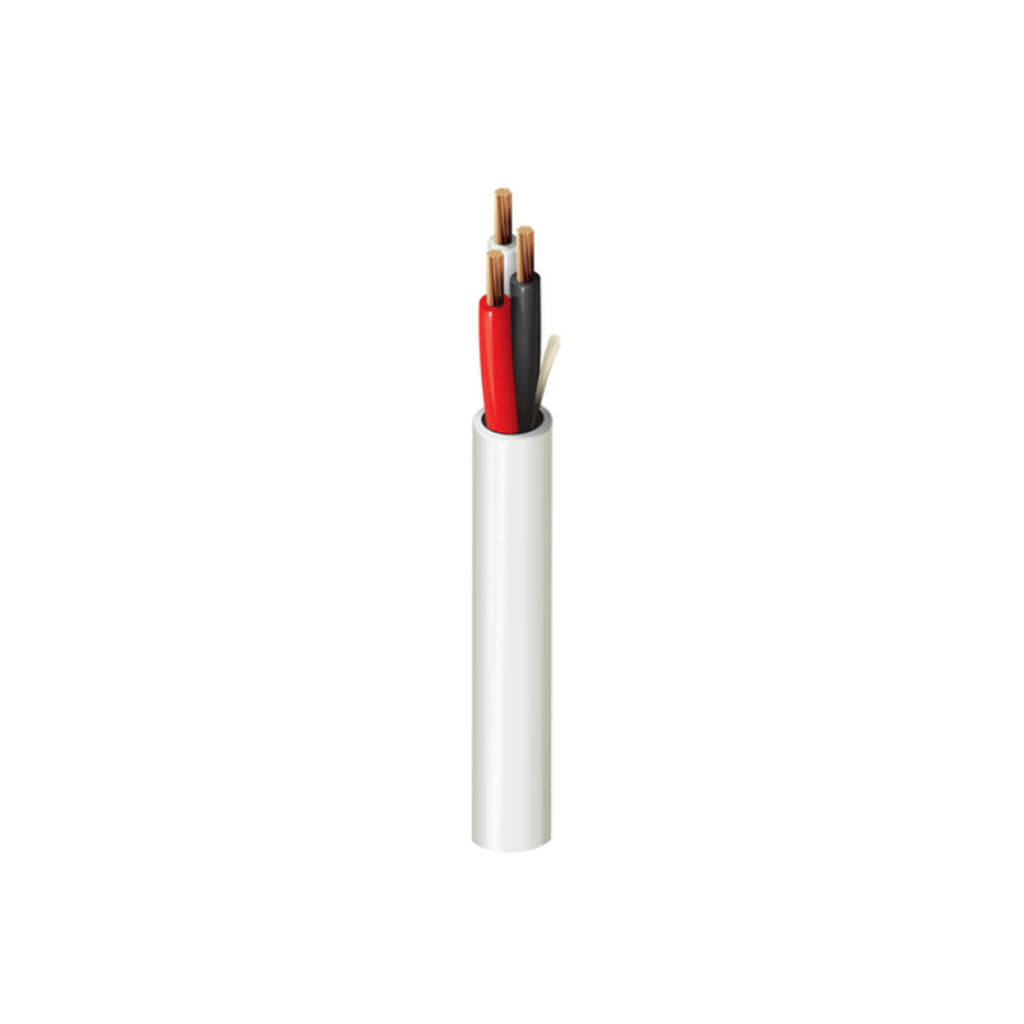

Security & Sound Cable, 3 Conductors 14 AWG stranded (19×27) bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.011 in (0.28 mm) | 0.090 in (2.3 mm) | Black, White, Red |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.224 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
