BELDEN 8428
Microphone Cable, 2 Conductor 18 AWG, TC
Product Description

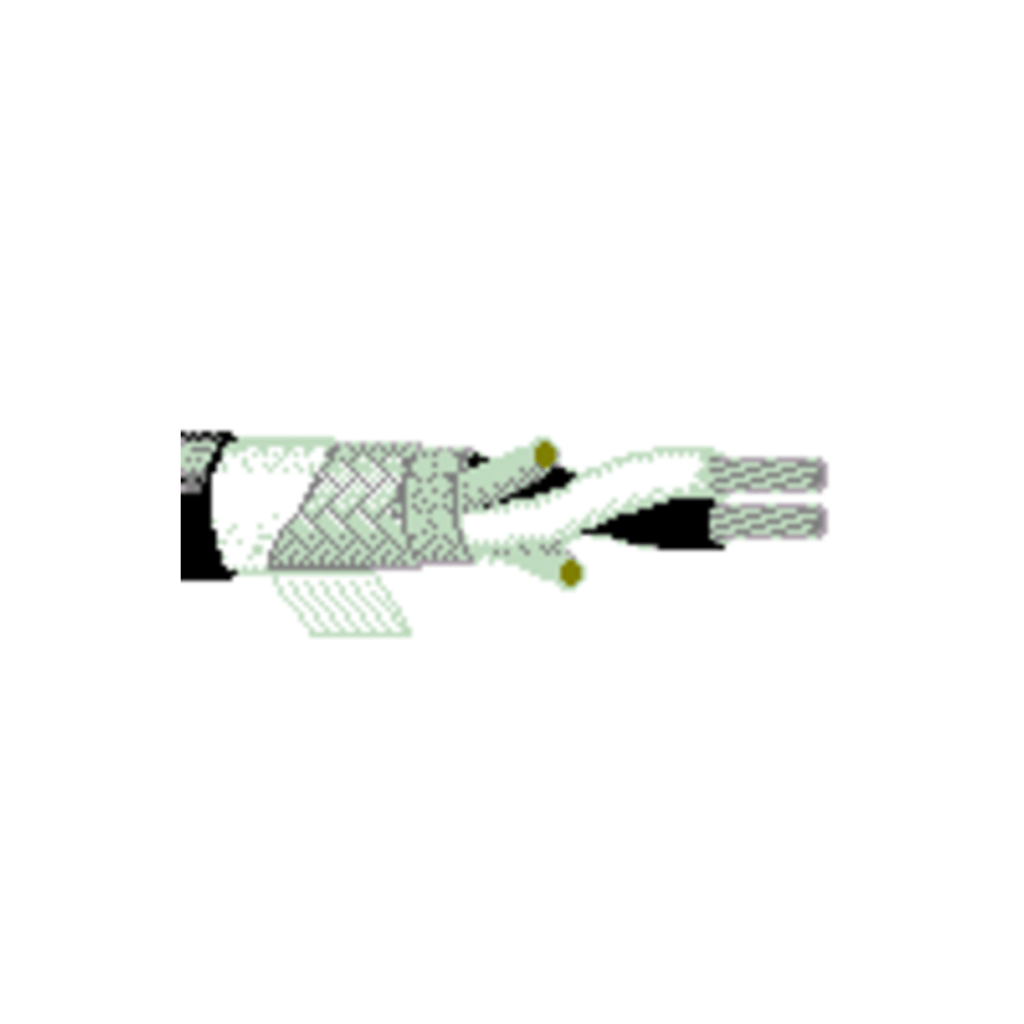

Microphone Cable, 2 Conductor, 18 AWG stranded (41×34) High-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CPE jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM – Ethylene Propylene Diene Monomer | 0.0235 in (0.597 mm) | 0.1 in (2.5 mm) | White, Black |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Rayon® | 85% | ||
| Braid | Tinned Copper (TC) | 85% | ||
