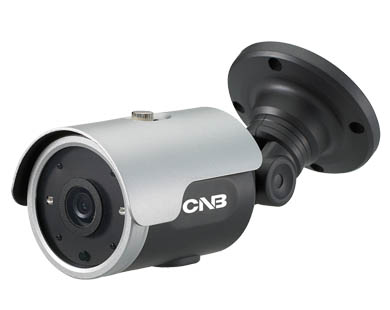

CNB NB21-7MHR Weatherproof Camera

– Fusion IR Full HD Bullet IP Camera
– 1/3” Progressive scan CMOS Sensor
– Dual-Codec (H.264/MJPEG)
– Progressive scan megapixel (2M CMOS)
– Multi profile streaming
(5 different streams per Resolution, Frame, Rate, Codec)
– Digital PTZ, video crop
– Analog video output (CVBS)
– Built-in standard PoE
– Two-way audio communication
– Dark Hunter + Super IR LED
– Compact design & Easy installation
– Vandal proof, Weather proof (IP66)

Description

Model NB21-7MHR
..[Camera]
Image Sensor Progressive scan 1/3 inch CMOS 2M pixels
Full resolution 1,920 x 1,080 pixels (Full HD)
Sync. System Internal
Lens Optional 2.9, 3.6, 6mm Fixed
Day & Night AUTO, DAY ,NIGHT
Sensitivity Dark Hunter Max – 0.0005 Lux / IR LED on : 0.5 Lux
Back Light Compensation On/Off
White Balance ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
Exposure DC/ ESC
WDR ON / OFF
3D-DNR 0~20
Dark Hunter AUTO ON (Max. X32) / OFF
Privacy Mask ON / OFF (1 Programmable Zone)
Motion Detection ON / OFF (3 Programmable Zone)
Digital Zoom X1 ~ X12
Mirror H/ V/ Rotate
DEFOG ON / OFF
OSD / Language BUILT IN Internally ( English…)
Super IR LED 2EA
..[Video]
Compression H.264 / MJPEG
Resolution 1,920 x 1,080@30fps
Multi-Profile Streaming * 5 Simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile
Intelligent Bit-rate Control Hybrid Bit rate control (VBR+CBR)
PTZ Digital PTZ & Video crop
Image Setting Text overlay, Privacy mask, De-interlace filter
Motion detection 3 regions
..[Audio]
Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Mono Downstream 64Kbps 16bit μ-law PCM ~ Line-out
..[Network]
Network Protocol IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IP Supported
Security – User ID & Password protection, IP address filtering,
– Digest Authentication, User Access Log
Streaming method -RTSP streaming with proprietary format for control informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile-S
..[External Terminals]
LAN 10/100BaseT LAN (auto MDIX)
Analog output 1 channel D1 CVBS output of the encoding video
Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output)
Factory Reset Supported
Other MIC, Line in / Line out / DC 12V in
..[Installation]
Standard PoE IEEE802.3af Supported
..[System Integration]
Intelligent Video Motion Detection
Alarm Triggers Motion Detection + Sensor Input + Audio Detection
Alarm Events Video file upload(FTP), Still image(Email), PTZ preset, Relay output
Alarm Buffer (Audio/Video)‏ configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)‏
..[Client Software]
NVR2 64ch(free of charge)
Smart App. Android, iOS (free of charge)
..[Operating Environment, Power, Dimensions]
Operating Temperature -10℃ ~ 50℃
Operating Humidity 8 ~ 80% RH
Power DC 12V, 0.6A
Dimensions Ø99mm x 221mm
Weight 960g
Casing AL, PC, IP66
Approvals FCC, CE, KC
Package information IP camera, CD (User’s guide, Software…)
..[Optional Items]
Local storage Micro SD card
Adapter DC 12V, 1.5A
