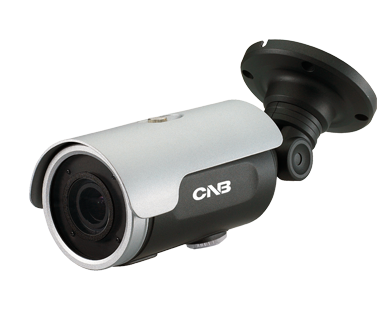

CNB NB85-7UR Weatherproof Camera

– 1/1.7” 8Mega CMOS Sensor
– 3840×2160@30fps Resolution (4K)
– Super IR LED 4ea, Max 30M
– DNR (2DNR + 3DNR)
– Multi-Codec (H.265/H.264/MJPEG)
– Multi profile streaming
(4 different streams per Resolution, Frame, Rate, Codec)
– Built-in standard PoE
– Two-way audio communication
– Built-in D/N (TDN), IR LED
– Vandal proof, Weather proof (IP66)

Description

Model NV85-7UR
..[Camera]
Image Sensor 1/1.7 Inch Progressive scan 8Mega CMOS
Effective Pixel 3840 x 2160 pixels (8M)
Sync. System Progressive scan
S/N Ratio More than 50dB(AGC Off)
Lense 3.6 ~ 10mm Motorized Vari-focal(F 1.5)
Angular of View Diagonal 136˚(W)~ 51˚(T)
IR LED Super IR LED 4ea / Max 30M
Min illumination 0.2Lux (Color), 0 Lux (IR LED On)
..[Function]
AGC Auto
Flickerless On/Off
Shutter speed Max. 1/30,000
White Balance AWB
Backlight Compensation DWDR
WDR Range 70dB
DNR 2DNR , 3DNR Supported
Day & Night Auto(ICR), IR LED
PRIVACY 1 Supported
Factory reset Supported
..[Interface]
LAN RJ-45(100/1000BaseT), Auto MDIX
Analog Video 1ch D1 CVBS Output
Alarm 1 Sensor input, 1 Relay output
Audio 1 Mic Line input, 1 Line Output
..[Network]
Video Compression Multi-Coded(H.265 / H.264 / MJPEG)
Max Resolution 3840 x 2160@30fps
Multi-Profile Streaming 4 simultaneous video profiles
Intelligent Bit-Rate Control VBR, CBR
Mono Upstream 32Kbps G.726 ADPCM,
64Kbps 16bit μ-law PCM (MIC / Line-in)
Mono Downstream 64Kbps G.71116bit μ-law PCM(Line-out)
IP(Internet Protocol) IPv4
Network Protocol IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IP Support
Security -User ID & Password protection
-IP address filtering-Digest Authentication
-User Access Log
Streaming method -RTSP streaming with proprietary formatfor control informations
-Standard RTSP streaming
-HTTP streaming
-Onvif Profile-S
Intelligent Video Motion Detection
AlarmTriggers Intelligent Video + Sensor Input
Alarm Events Video file upload(FTP), Still Image(Email), Relay output
Alarm Buffer (Audio/Video) configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)
Client Software NVR2, Smart App(Android, iOS)
..[General]
Operating Temperature -10℃~ 50℃
Operating Humidity 0 ~ 80% RH
Power DC12V, Max. 0.6A, IEEE802.3af PoE
Dimensions (Øx H) Ø99 x 252.7mm
Material / IP Ratio AL, PC / IP66
Weight Approx. 1.1kg
