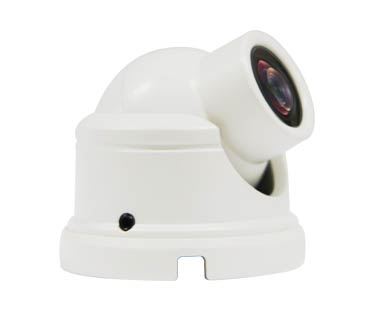

| Model | NS11-4MH |
| ..[Camera] | |
| Image Sensor | Progressive scan 1/3 inch CMOS 1.3M pixels |
| Full resolution | 1,280 x 720 pixels (HD) |
| Sync. System | Internal |
| Lens | 3.6mm, F1.8 |
| Day & Night | AUTO, DAY ,NIGHT |
| Sensitivity | Dark Hunter Max – 0.0005 Lux |
| Back Light Compensation | ON / OFF |
| White Balance | ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH |
| Exposure | DC / ESC |
| WDR | ON / OFF |
| 3D-DNR | 0~20 |
| Dark Hunter | AUTO ON (Max.X128) / OFF |
| Privacy Mask | ON / OFF (10 Programmable Zone) |
| Motion Detection | ON / OFF (4 Programmable Zone) |
| Digital Zoom | X1 ~ X12 |
| Mirror | H/ V/ Rotate |
| DEFOG | ON / OFF |
| OSD / Language | BUILT IN Internally ( English…) |
| ..[Video] | |
| Compression method | Simultaneous Dual Codec (H.264 / MJPEG) |
| Resolution | 1,280 x 720@60fps |
| Multi-Profile Streaming | * 5 simultaneous video profiles * Select the codec type, resolution and frame rates for each profile. |
| Intelligent Bit-rate Control | Hybrid Bit Rate control (VBR+CBR) |
| PTZ | Digital PTZ & Video crop |
| Image Setting | Text overlay, Privacy mask, De-interlace filter |
| Motion detection | 3 regions |
| ..[Audio] | |
| Mono Upstream | 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in |
| Mono Downstream | 64Kbps 16bit μ-law PCM ~ Line-out |
| ..[Network] | |
| Network Protocol | IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS |
| Dynamic IP | Supported |
| Security | – User ID & Password protection, IP address filtering, – Digest Authentication, User Access Log |
| Streaming method | -RTSP streaming with proprietary format for control informations – Standard RTSP streaming – HTTP streaming – Onvif Profile-S |
| ..[External Terminals] | |
| LAN | 10/100BaseT LAN (auto MDIX) |
| Alarm input / output | Alarm I/O (1 Sensor input & 1 Relay output) |
| Factory Reset | Supported |
| Other | MIC, Line in / Line out / DC 12V in |
| ..[Installation] | |
| Standard PoE | IEEE802.3af Supported |
| ..[System Integration] | |
| Intelligent Video | Motion Detection |
| Alarm Triggers | Motion Detection + Sensor Input + Audio Detection |
| Alarm Events | Video file upload(FTP), Still image(Email), Relay output |
| Alarm Buffer (Audio/Video) | configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec) |
| ..[Client Software] | |
| NVR2 | 64ch (free of charge) |
| Smart App. | Android, iOS (free of charge) |
| ..[Operating Environment, Power, Dimensions] | |
| Operating Temperature | -10℃ ~ 50℃ |
| Operating Humidity | 8 ~ 80% RH |
| Power | DC 12V, 0.5A |
| Dimensions | Camera : Ø54.5mm x 48mm Encoder Box : 45.6mm x 25mm x 114mm |
| Weight | Camera : 125g Encoder Box: 115g |
| Casing | AL, PC, IP66 (Camera portion only) |
| Approvals | FCC, CE, KC |
| Package information | IP camera, CD (User’s guide, Software…) |
| ..[Optional Items] | |
| Local storage | Micro SD card |
| Adapter | DC 12V, 1.5A |
