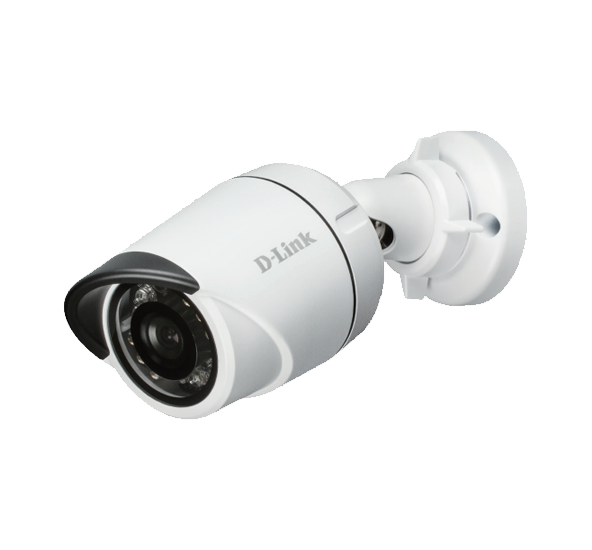

D-Link DCS-4703E
Vigilance Full HD Outdoor PoE Mini Bullet Camera
Features
720p HD Camera
• 1/3” 3 megapixel progressive CMOS sensor
• Fixed lens with focal length of 3.6 mm, and an F1.8 aperture
• Up to resolution of 1080p at 30 fps
• H.264, MJPEG codec support for streaming and recording
Outdoor placement
• Built-in IR LED illuminator with a 20 meter range for use in dark areas
• Works in a wide range of climates from -30 °C to 50 °C
• Protective bracket for cables
• IP66 certified housing
• Glare reducing sun shield
• Wide Dynamic Range image enhancement
• 3D filtering reduces image noise in low-light environments
Flexibility and Connectivity
• 10/100 Fast Ethernet port with PoE (Power over Ethernet) ensures easy integration into your network
Technical Specifications
| Camera | |
| Camera Hardware Profile | • 1/3” 3 megapixel progressive CMOS sensor • 20 meter IR illumination distance • Minimum illumination: • Day Mode: 0.2 lux • Night Mode (LEDs off): 0.1 lux • Night Mode (LEDs on): 0 lux • Built-in Infrared-Cut Removable (ICR) Filter module • 10x digital zoom • Minimum object distance 0.5 m • Focal length: 3.6 mm • Aperture: F1.8 • Angle of view: • (H) 70° • (V) 40° • (D) 80° |
| Camera Housing | • IP-66 compliant weatherproof housing |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • Configurable privacy mask zones • Configurable shutter speed, brightness, saturation, contrast, and sharpness • WDR • 3D filter |
| Video Compression | • Simultaneous H.264/MJPEG format compression • H.264/MJPEG multicast streaming • JPEG for still images |
| Video Resolution | • 16:9 • 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps • 4:3 • 2048 x 1536 up to 15 fps • 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 up to 30 fps |
| External Device Interface | • 10/100 BASE-TX Fast Ethernet port • Supports 802.3af PoE |
| Network | |
| Network Protocols | • IPv6 • IPv4 • TCP/IP • UDP • ICMP • DHCP client • NTP client (D-Link) • DNS client • DDNS client (D-Link) • SMTP client • FTP client • HTTP / HTTPS • Samba client • PPPoE • UPnP port forwarding • RTP / RTSP/ RTCP • IP filtering • QoS • CoS • Multicast • SNMP • ONVIF compliant |
| Security | • Administrator and user group protection • Password authentication • HTTP and RTSP authentication |
| General | |
| Weight | • 430 g ± 5 % |
| External Power Adapter | • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC 1.5 A |
| Power Consumption | • 6.4 watts ± 5 % (PoE) |
| Temperature | • Operating: -30 to 50 °C (-22 to 122 °F) • Storage: -20 to 70° C (-4° to 158° F) |
| Humidity | • Operating: 20 % to 80 % non-condensing • Storage: 5 % to 95 % non-condensing |
