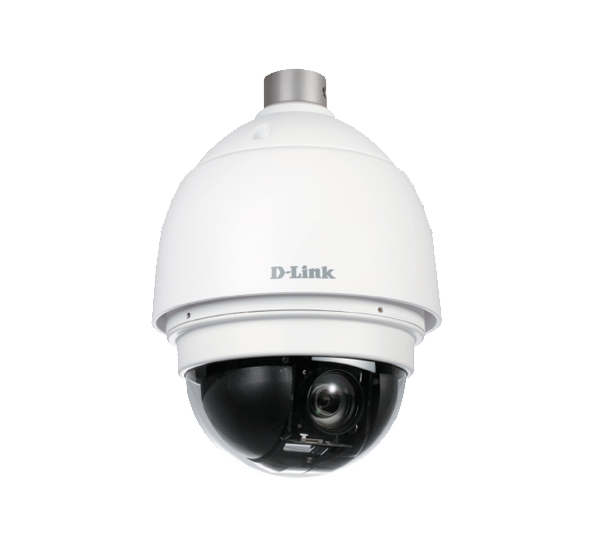

D-Link DCS-6915
20X Full HD High Speed Dome Network Camera
Features
Camera
• Sony Exmor 1/2.8” progressive 3 megapixel
CMOS sensor
• WDR/BLC for difficult light sources
• 20X optical zoom and 8X digital zoom
• F1.6 to F3.5 (W-T)
• ONVIF Compliant
Connections
• 10/100 Fast Ethernet port
• MicroSD card slot
• Audio in/out
• 4 alarm inputs/2 alarm outputs
Video & Audio
• Real-time H.264 and Motion JPEG compression
• Full HD(1080P) resolution at 30/25 fps
• HD(720P) resolution at 60/50 fps
• Multi-stream broadcast
• 2-way audio
• G.711/G.726 audio codec support
• Multiple access list
• Privacy Masks
Housing
• IP-66 weather-resistant
• IK-10 vandal-proof
• Built-in heater and fan
Technical Specifications
| Camera | |
| Camera Hardware Profile | • Sony Exmor 1/2.8” progressive 3 Megapixel CMOS sensor • Minimum illumination 0.1 lux (Color); 0.01 Lux (B/W) • Built-in Infrared-Cut Removable (ICR) Filter • S/N ratio > 50 dB ( AGC off ) • Electronic shutter 1/1 to 1/10,000 sec. • Variable 20x optical zoom, 8x digital zoom • Focal length 4.7 to 96 mm • Angle of View • (D) 64.42° to 4.65° • (H) 52.27° to 4.07° • (V) 33.4° to 2.33° |
| PTZ Hardware Profile | • Pan travel: 360° endless • Tilt Travel: -10° to 190° • Presets: 256 points • Preset Accuracy: ± 0.225° • Preset Speed: 5° to 400°/s • Sequence Paths: 8 • Auto Pan Paths: 4 • Cruise Paths: 8 • Pan and tilt speed proportional to zoom ratio • Resume after power loss • Home Function: Preset, Sequence, Auto pan, Cruise • Auto Flip: Mechanical/Digital/Off • Digital Slow Shutter • Image Freeze • Image Inverse |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • 16 configurable privacy masks • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression | • Simultaneous H.264/MJPEG format compression • H.264 multicast streaming • JPEG for still images |
| Video Resolution | • 1920 x 1080 (1080P) • 1280 x 720 (720P) • 640 x 480 (VGA) • 800 x 600 (SVGA) • 1024 x 768 (XGA) • 1280 x 1024 (SXGA) • 640 x 480 (VGA) • 320 x 240 (CIF) |
| Audio Support | • G.726 • G.711 |
| External Device Interfaces | • 4 alarm inputs • 2 alarm outputs • Audio input/output |
| Network | |
| Network Protocols | • IPv4 • TCP/IP • UDP • ICMP • DHCP Client • NTP Client (D-Link) • DNS Client • DDNS Client (D-Link) • SMTP Client • FTP Client • HTTP • PPPoE • UPnP Port Forwarding • RTP/RTSP/RTCP • IP filtering • IGMP • IEEE802.1x • QoS • SNMP • ONVIF Compliant |
| Security | • Administrator and user group protection • Password authentication |
| General | |
| Power Input | • AC 24 V, 3 A |
| Max. Power Consumption | • Max 65 W with heater on |
| Operating Temperature | • -40 to 50 °C (-40 to 122 °F) |
| Storage Temperature | • -20 to 70 °C (-4 to 158 °F) |
| Weatherproof | • IP-66 standard |
| Vandal-proof | • IK-10 standard |
| Humidity | • 20% to 80% non-condensing |
| Weight | • 2.32 kg (5.11 lbs), with sunshield |
