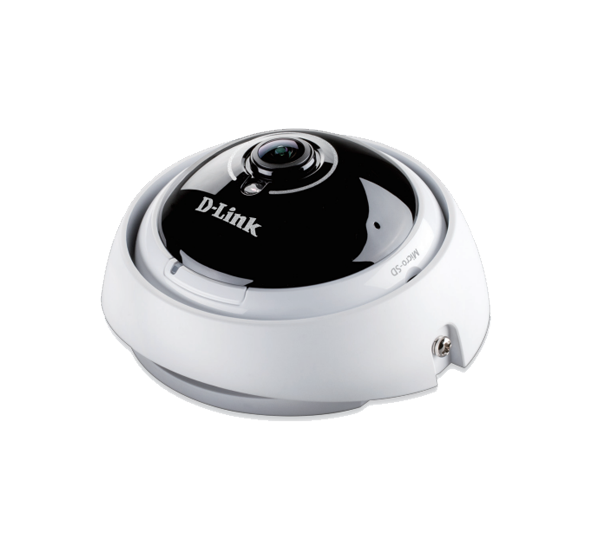

D-Link DCS-4622
Vigilance 360° Full HD PoE Network Camera
Features
Camera
• 1/3.2” 3 megapixel CMOS progressive sensor
• Fixed fisheye lens: 1.1 mm F2.0
• Built-in microphone and speaker for 2-way communication
• ONVIF compliant
Connections
• 10/100 Fast Ethernet port with PoE support
• microSD card slot for onboard storage
Image & Video
• High resolution video and snapshots, up to
1920 x 1536
• Distortion correction
• H.264 and Motion JPEG compression
• Desktop, Wall, and Ceiling mount display modes
• ePTZ viewing
• Simultaneous multi-stream support
• Supports multiple access lists
• Built-in Samba client for saving to a NAS
Technical Specifications
| Camera | |
| Camera Hardware Profile | • 1/3.2” 3 megapixel progressive CMOS sensor • 8 meter (25 feet) IR illumination distance • Minimum illumination: • Day Mode: 0.5 lux • Night Mode (LEDs off): 0.25 lux • Night Mode (LEDs on): 0 lux • Built-in Infrared-Cut Removable (ICR) Filter module • Focal length: 1.1 mm • Aperture: F2.0 • Angle of view: |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Flip and mirror • Configurable motion detection windows • Desktop, wall, and ceiling display modes • Configurable privacy mask zones • Configurable shutter speed, brightness, saturation, contrast, and sharpness • WDR • 3D filter |
| Display Modes: | • Fisheye View • Normal View • Multi-View with Panorama • Panoramic View • Mixed View (with Fisheye) • Multi View |
| Video Compression | • Simultaneous H.264/MJPEG format compression • H.264/MJPEG multicast streaming • JPEG for still images |
| Video Resolution | • 1920 x 1536, 1440 x 1152, 1280 x 1024, 960 x 768, 640 x 512 up to 25 fps |
| Audio Support | • G.711 |
| External Device Interfaces | • 10/100 BASE-TX Fast Ethernet port • Supports 802.3af PoE (Class 2) • microSD/SDHC/SDXC card slot, accepts cards up to 128 GB |
| Network | |
| Network Protocols | • IPv4, IPv6, ARP, TCP, UDP, ICMP • DHCP client • NTP client (D-Link) • DNS client • SMTP client • DDNS client (D-Link) • SMTP client • FTP client • HTTP server • HTTPS for configuration • Samba client • PPPoE • UPnP port forwarding • RTP/RTSP/RTCP • IP filtering • QoS/DSCP • CoS • Multicast • SNMP • IGMP • ONVIF compliant • Bonjour |
| Security | • Administrator and user group protection • Password authentication • HTTP and RTSP digest encryption |
| Physical | |
| Weight | 188 g ± 5% |
| External Power Adapter (not included) | • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC, 1.5 A |
| Power Consumption | • 4.6 watts max. |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 70 °C (-4 to 158 °F) |
| Humidity | • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing |
