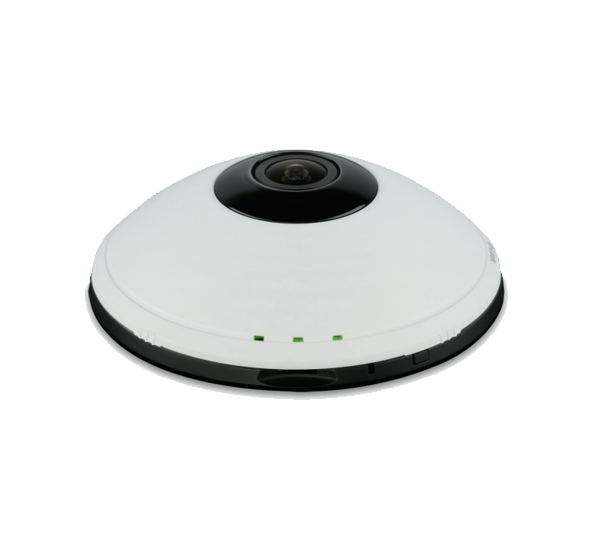

D-Link DCS-6010L
Wireless N 360° Home Network Camera
Features
Camera
• 1/3.2” 2 megapixel CMOS progressive sensor
• Fixed fisheye lens: 1.25 mm F2.0
• Built-in microphone and speaker for 2-way
communication
• ONVIF compliant
Connections
• 802.11n wireless connectivity
• 10/100 Fast Ethernet port
• Micro SD/SDHC Card slot for onboard storage
Image & Video
• High resolution (1600 x 1200)
• Fisheye distortion correction
• H.264, MPEG-4 and Motion JPEG compression
• ePTZ viewing
• Simultaneous multi-stream support
• Supports multiple access lists
• Built-in Samba client for saving to a NAS
Technical Specifications
| Camera | |
| Camera Hardware Profile | • 1/3.2” 2 megapixel progressive CMOS sensor • Minimum illumination: 2 lux • Built-in microphone and speaker • 10x digital zoom • Focal length: 1.25 mm • Aperture: F2.0 • Angle of view: • (H) 180° • (V) 180° • (D) 180° |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Fisheye distortion correction • Time stamp and text overlays • Configurable brightness, saturation, contrast, and sharpness • Configurable motion detection windows |
| Video Compression | • Simultaneous H.264/MPEG-4/MJPEG format compression • H.264/MPEG-4 multicast streaming • JPEG for still images |
| Video Resolution | 1600 x 1200, 1200 x 900, 800 x 600, 400 x 300 up to 15 fps recording |
| Audio Support | • G.726 • G.711 |
| External Device Interfaces | • 10/100 BASE-TX Fast Ethernet port • 802.11n wireless • MicroSD/SDHC card slot |
| Network | |
| Network Protocols | • IPv6 • IPv4 • TCP/IP • UDP • ICMP • DHCP client • NTP client (D-Link) • DNS client • DDNS client (D-Link) • SMTP client • FTP client • HTTP / HTTPS • Samba client • PPPoE • UPnP port forwarding • RTP / RTSP/ RTCP • IP filtering • QoS • CoS • Multicast • IGMP • ONVIF compliant |
| Security | • Administrator and user group protection • Password authentication • HTTP and RTSP digest encryption |
| Physical | |
| Weight | • 267 g ± 5% |
| External Power Adapter | • Input: 100 to 240 V AC, 50/60 Hz • Output: 5 V DC, 1.2 A |
| Power Consumption | • 3.9 watts max |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 70 °C (-4 to 158 °F) |
| Humidity | • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing |
