D-Link DCS-3716

D-Link DCS-3716

分類: ,

描述

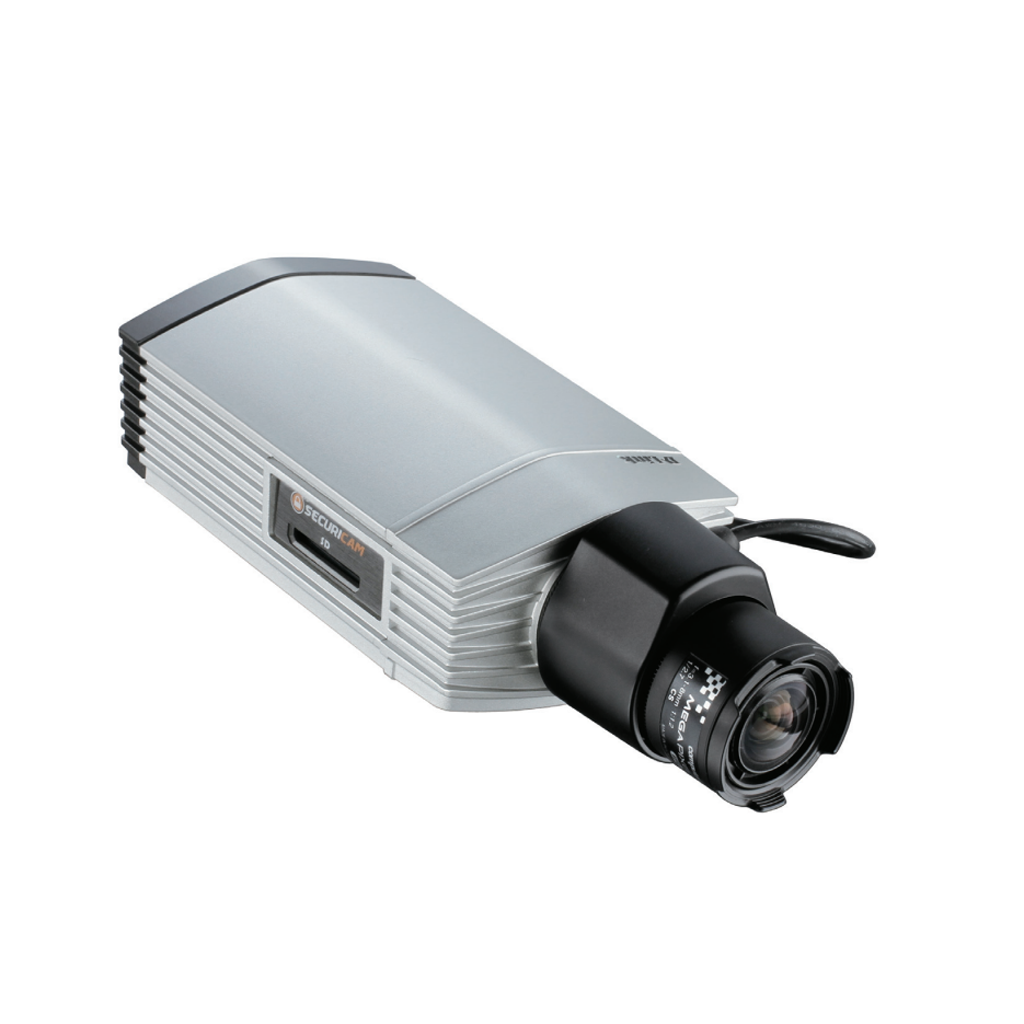

D-Link DCS-3716

Full HD Day & Night WDR Network Camera



Features

  • Sony Exmor 1/2.8” 3 Megapixel CMOS progressive sensor
  • Real-time H.264, MPEG-4, and Motion JPEG compression
  • Full HD resolution (1920×1080) up to 3M (2048×2536)
  • DC iris varifocal 3.1 mm (W) to 8 mm (T) F1.2 CS mount lens
  • Built-in removable IR-cut filter for day/night surveillance
  • WDR to handle strong light sources
  • Simultaneous multi-stream support
  • ePTZ
  • Supports multiple access list
  • Privacy Mask feature
  • SD Card slot
  • 2-way audio support
  • 2 alarm inputs / 1 alarm output
  • Power over Ethernet (PoE)
  • 3GPP mobile surveillance
  • Built-in Samba client for NAS
  • ONVIF compliant



Technical Specifications

CameraCamera Hardware Profile
  • Sony Exmor 1/2.8” 3 Megapixel progressive CMOS sensor
  • Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W)
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • WDR SN ratio : 100 dB
  • 10X digital zoom
  • DC iris varifocal length: 3.1 mm to 8.0 mm
  • Aperture: F1.2
  • Angle of view:
    (H) 38.7° to 95.9°
    (V) 29.1° to 71.0°
    (D) 48.3° to 123.1°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 Configurable privacy masks zone
  • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images
  • H.264/MPEG-4 multicast streaming
Video Resolution
  • 16:9 – 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144
  • 4:3 – 2048 x 1536, 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144
  • 3M (2048×1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps
Audio SupportG.726
External Device Interface
  • 2 DI / 1 DO
  • 12 V DC, 200 mA Output
  • RS-485
  • SD card
  • Audio input / output
  • Video output
NetworkNetwork ProtocolsIPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS,
Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
GeneralPower Input12 V DC 1.25 A, 50/60 Hz, 802.3af PoE
Max. Power Consumption4 watts
Operating Temperature0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature20 to 70 °C (-4 to 158 °F)
Humidity20% to 80% non-condensing
Weight580 g
