描述

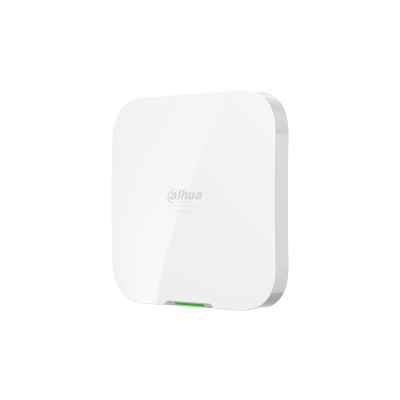

ARA46-N-W2
Alarm Repeater Pro(Only compatible with ARC3800H series)
ARA46-N-W2 屬大華防盜警報產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考防盜系統。規格以原廠資料為準。
規格
Port
| Wireless Peripheral | 128 wireless peripherals |
|---|---|
| Network Mode | Ethernet and Wi-Fi |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps Ethernet port |
| Storage Battery | One built-in 4,750 mah rechargeable lithium battery |
Function
| Indicator Light | 1 indicator for indicating pairing and working status |
|---|---|
| Button | Includes a reset button, power button and AP switch button |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Pairing Mode | Auto/Manual |
Technical
| Operating Current | 220 VAC, 100 mA (max) 220 VAC, 8.6 mA (standby) |
|---|
Wireless
| Carrier Frequency | Airfly: 433.05-434.79 MHz RF-HD (normal speed): 433.05-434.79 MHz RF-HD (high speed): 2400-2483.5 MHz |
|---|---|
| Transmitter Power (EIRP) | Limit 10 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Airfly:1,600 m (5249.34 ft) RF-HD (normal speed):1,200 m (3937.01 ft) RF-HD (high speed):300 m (984.25 ft) |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
General
| Power Supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Standby Time | 35 hours(only connected to the Hub through Airfly and normal speed RH-HD) 18 hours(connected to the Hub through Ethernet, Wi-Fi or high speed RF-HD) |
| Power Consumption | 22 W (max) 1.9 W (standby) |
| Operating Temperature | When battery is not charging: –10 °C to +50 °C (+14 °F to +122 °F) When battery is charging : 0 °C to +45 °C (+32°F to +113 °F) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 174.8 mm × 174.8 mm × 38.3 mm (6.88" × 6.88" × 1.51") (L × W × H) |
| Net Weight | 510 g (1.12 lb) |
| Gross Weight | 860 g (1.90 lb) |
| Installation | Supports wall mount and desktop mount installation |
| Casing Material | PC + ABS |
| Certifications | CE |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions | 254 mm × 211 mm × 61 mm (10.00" × 8.31" × 2.40") (L× W × H), standalone in the inner box 524 mm × 508 mm × 442 mm (20.63" × 20.00" × 17.40") (L × W × H), protective case |
Wi-Fi
| Wi-Fi Standard | IEEE 802.11b/g/n/ax |
|---|---|
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 [email protected] MHz |
