描述

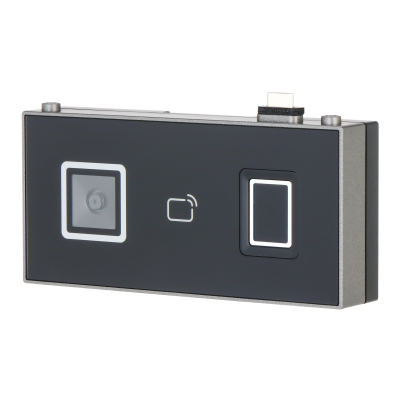

ASF7G-MEFQ
IC Card,ID Card,QR Code,Fingerprint Access Control Extension Module
ASF7G-MEFQ 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
| Button Type |
Mechanical |
Basic
| Casing Material |
Glass; PC+ABS; PC |
Function
| Verification Method |
Card;Fingerprint;QR Code |
RFID
| Card Type |
IC card;ID card;Desfire card (EV3,Compatible with Dahua card by default);Felica card |
| Modulation Type |
AM |
| Frequency Range |
125 kHz; 13.56 MHz |
| Max. Transmission Power |
125 kHz: 66 dBuA/m @10 m; 13.56 MHz: 42 dBuA/m @10 m |
Performance
| Card Reading Distance |
0 cm – 3 cm |
| Fingerprint Sensor Type |
Capacitive |
| Fingerprint Verification Mode |
1:N |
| Fingerprint Comparison Time |
1.5 s |
| Fingerprint Recognition Time |
0.5 s |
| Illuminator (QR Code) |
Yes |
| Supported Codes |
EAN: EAN-13,EAN-8,UPC-A,UPC-E,ISBN,ISSN CODE128: CODE128 A,CODE128 B,CODE128 C |
| Code Type |
Paper code; Electronic code |
Capacity
| Fingerprint Capacity |
10000 |
Port
Alarm
General
| Power Supply |
5 VDC, 0.5A (Powered through access control standalone) |
| Protection |
IP65 |
| Power Consumption |
≤5 W |
| Product Dimensions |
52.2 mm × 106.3mm × 20.5 mm (2.06" × 4.19" × 0.81") (H × W × D) |
| Packaging Dimensions |
151 mm × 135 mm × 54 mm (5.94" × 5.31" × 2.13") (H × W × D) |
| Transport Package Dimensions |
485 mm × 295 mm × 310 mm (19.09" × 11.61" × 12.20") (H × W × D) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
0% – 90% RH (Non-condensing) |
| Operating Altitude |
0 m – 1300 m (0 ft – 4265.09 ft) |
| Operating Environment |
Indoor;Outdoor |
| Gross Weight |
0.17 kg (0.37 lb) |
| Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity |
30% – 75% RH (Non-condensing) |
