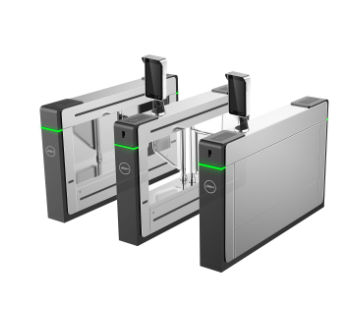

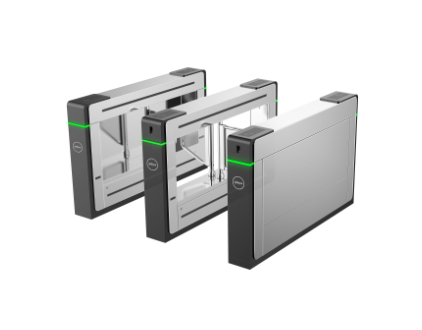

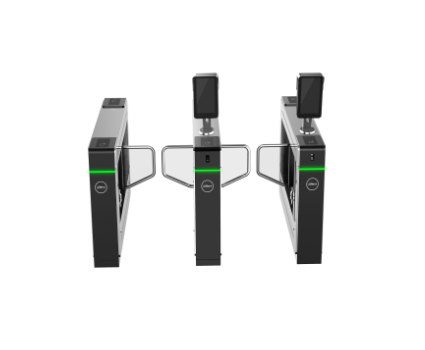

Dahua ASGB8XXY-X Swing barrier

描述

Swing barrier

> Brushless servo motor.

> The motor can be used more than 5 million times.

> Barriers will be closed automatically if no one enters the turnstile after the identity is verified.

> Parameters can be restored to default settings.

> 20 pairs of IR light curtain and 10 pairs of IR detector.

> Support sound and light alarm prompt and volume adjustment.

> The lock and unlock of barriers can be controlled by remote controller (not provided).

> 4 types of security settings.

> When receiving fire alarm signals, the turnstile will be normally open, and the turnstile can output alarm signals.

> Mechanical anti-pinch and IR anti-pinch; anti-collision.

> 9 passing modes: Pass with identity verified, not allowed to pass, and pass without restrictions, and you can use the three modes in any combination.

> Unlock and lock speed, pass duration, and lock delay duration are adjustable.

> Support second unlock, memory mode, and unlock settings after power-off.

> Support intrusion alarm (entering and exiting), trailing alarm, stay overtime alarm, climbing turnstile alarm, unlock anomaly alarm, barrier anomaly alarm, IR anomaly alarm, communication anomaly alarm, and more.

> Support integration of face, fingerprint, QR code, CPU card reader/ ID card reader module and more to achieve a combination of multiple authentication

Basic

Product Dimensions

1600 mm × 220 mm × 1000 mm (62.99″× 8.66″× 39.37″)

Surface Processing

Nanometer film

Casing Material

SUS304 1.5 mm

Barrier Material

Acrylic

Motor Type

Brushless servo motor

Light Curtain

20 pairs

IR Detector

10 pairs

Digital Quantity Port

2 I/O ports

Functions

RS-232 port

1 for debugging

Anti-collision

Yes

Anti-pinch

Yes

Memorizing

Yes

Anti-shadowing

Yes

Unlock after Power-off

Not support

Sound and Light Prompt

Yes

Counting

Yes

Performance

Alarm

Yes

Lock and Unlock Speed

0.6 s–1.6 s, adjustable

Passing Duration

2 s–60 s, adjustable

Lock Delay

0 s–60 s, adjustable

Rust Protection Level

210H

IP Grade

IPX4

Lifetime

≥ 5 million times

Passing Frequency

20 people/minute–40 people/minute

General

Noise Grade

Less than 60dB within 1.5 meters

Net Passage Width

Standard passage width: 600 mm Maximum custom passage width: 1200 mm

Gross Weight

Single-motor: ≤ 127 kg (279.99 lb) Double-motor: ≤ 137 kg (302.03 lb)

Net Weight

Single-motor: ≤ 100 kg (220.46 lb) Double-motor: ≤ 110 kg (242.51 lb)

Packing Material

Carton + wooden pallet

Power Supply Mode

AC: 100V–240V 1.5A 50/60HZ

Power Consumption

Single-motor: standby ≤ 20w, working ≤ 100w Double-motor: standby ≤ 40w, working ≤ 200w

Working Temperature

-30°C to 70°C (-22°F to 158°F)

Working Humidity

10%RH-95%RH

Working Environment

Outdoor
