描述
ASGB9XXS-X

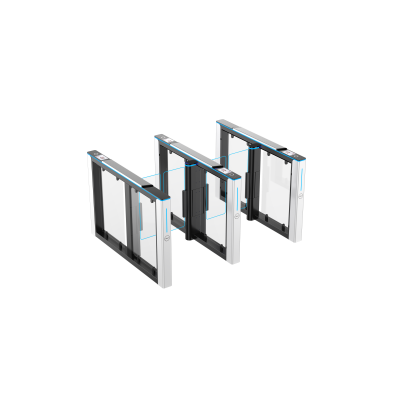

Dahua Swing Barrier
ASGB9XXS-X 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
| SDK |
Yes |
Basic
| Product Type |
Swing Barrier |
| Motor Type |
DC brushless servomotor |
| Status Indicator Light |
Red Strobe – Abnormal Status;Solid Green – Always Open;Solid Blue – Working Status;Green Strobe – Authorized Status |
| Voice Prompt |
Yes |
| Main Materials of Cabinet |
Aluminum Material |
| Surface Treatment |
anodic oxidation |
| Number of Turnstile Card Reader |
2 |
| Display Screen |
7" display |
| Screen Type |
Capacitive Touchscreen |
| Screen Resolution |
600 (H) × 1024 (V) |
| Camera |
1/2.8" 2-MP CMOS dual-lens camera that offers WDR functions and high definition imagery |
| Light Compensation |
Auto IR |
Function
| Auto Registration |
Yes |
| Verification Method |
QR Code;Remote;Face Recognition;Card |
| Advertisement Playing |
Plays advertisements in video and image format |
| Capture Function |
Yes |
RFID
Performance
| MCBF |
≥20 million times |
| Card Reading Distance |
0–5 cm |
| Passage Width |
Acrylic: 600 mm -1,500 mm (23.62" -59.06"); Tempered Glass: 600 mm -900 mm ([23.62" -35.43"] Customize for use) |
| Max Custom Passage Width |
Acrylic: 1,500 mm (59.06"); Tempered Glass: 900 mm (35.43") |
| Passing Speed |
20–60 persons/min. It is affected by the interval between the passage of persons and the type of passing mode. |
| Unlock/Lock Speed |
≥0.5 sec |
| Pairs of IR Curtain Sensors |
20 pairs |
| Pairs of IR Detectors |
10 pairs |
| Top Cover Thickness |
≥3.8 mm (0.15") |
| Supported Codes |
QR Code |
| Code Type |
Printed QR code, digital QR code |
| Frame Thickness |
≥3.2 mm (0.13") |
| Barrier Material |
Acrylic |
| Face Recognition Height Range |
1.2 m–2.4 m (3.94 ft–6.56 ft) |
| Face Recognition Distance |
0.3 m–1 m (0.98 ft–3.28 ft) |
| Face Recognition Accuracy |
99.90% |
| Face Recognition Time |
0.2 s |
| Max. Height of Customized Barrier |
Acrylic: 885 mm (34.84"); Tempered Glass: 1,800 mm (70.87") |
| Standard Height of Barrier |
Acrylic: 885 mm (34.84") |
Capacity
| User Capacity |
100,000 |
| Card Capacity |
500,000 |
| Record Capacity |
1,200,000 |
| Face Image Capacity |
100,000 |
Port
| Network Port |
2-channel self-adaptive 10/100 Mbps Ethernet port |
| Fire Port |
2 |
| Entrance Unlock Port |
2 |
| Exit Unlock Port |
2 |
Stay overtime alarm
| Stay Overtime Alarm |
Yes |
| Tailing Alarm |
Yes |
| Intrusion |
Yes |
| Reverse Intrusion Alarm |
Yes |
| Jumped Barrier Alarm |
Yes |
| Abnormal Unlock Alarm |
Yes |
General
| Power Supply |
AC 100–240 V, 1.5 A, 50 Hz or 60 Hz |
| Series |
ASGB9S series |
| Power Consumption |
120 W |
| Product Dimensions |
1500 mm × 110 mm × 1000 mm (59.06" × 4.33" × 39.37") (L × W × H) |
| Module Protruding Size |
75 mm (2.95") |
| Packaging Dimensions |
1590 mm × 346 mm × 1083 mm (62.6" × 13.62" × 42.64") (L × W × H) |
| Gross Weight |
125 kg (275.58 lb) |
| Operating Temperature |
–25 °C to +70 °C (–13 °F to +158 °F) |
| Operating Humidity |
5%–90% RH |
| Operating Environment |
Indoor |
| Storage Temperature |
–25 °C to +70 °C (–13 °F to +158 °F) |
| Storage Humidity |
5%–90% RH |
