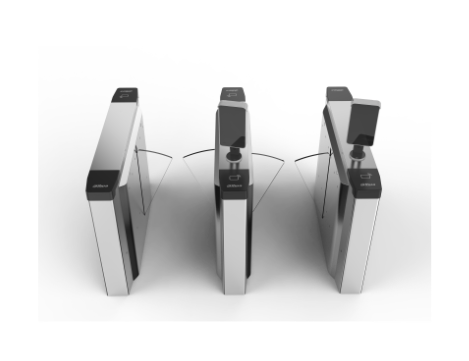

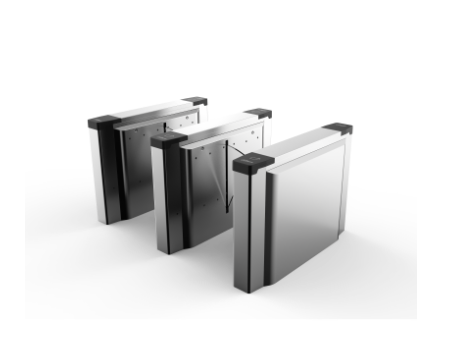

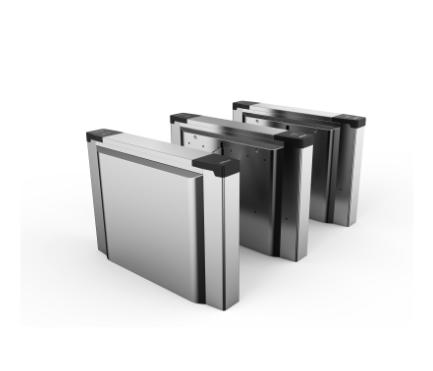

Dahua ASGY5XXB-X Flap Turnstile

> Barriers will be closed automatically if no one enters the turnstile after the identity is verified.
> Parameters can be restored to default settings.
> Supports sound and light alarm, and volume adjustment.
> Supports controlling the barriers with a remote control (optional).
> Four types of security settings for different application.
> Supports alarm signals output, and setting normally open mode when receiving fire alarm signal.
> Support mechanical and IR anti-pinch, and anti-collision.
> Supports nine passing modes: authorized pass, no pass, free pass, etc.
> Supports adjusting unlock and lock speed, passing duration, and lock delay duration.
> Support second unlock, memory mode, and configuring the unlocking status during power disconnection (optional).
> Support sound and light alarms of intrusion, trailing, entering or exiting against the direction of others, overstay, unlock exception, climbing, barrier/IR/communication exception, etc.
> Supports multiple authentication methods, by integrating face/ fingerprint/QR code/CPU card reader/ID card reading modules.

Basic

Dimensions

1400 mm × 280 mm × 1000mm (55.12″ × 11.02″ × 39.37″) (L × W × H)

Surface Texture

Ink brushed

Barrier

Acrylic

Motor

DC brushless servo motor

IR Detector

12 pairs

Function

Anti-collision

Yes

Anti-pinch

Yes

Memory Mode

Yes

Anti-tailing

Yes

Sound & Light Alarm

Yes

People Counting

Yes

Alarm

Yes

Second Unlock

Yes

Performance

Lock/Unlock Speed

0.7 s–2.4 s (adjustable)

Pass Duration

2 s–60 s (adjustable)

Lock Delay Duration

0 s–60 s (adjustable)

MCBF

≥ 5 million times

Passing Frequency

20–60 people/minute

Passage Width

Standard: 600 mm

Casing

SUS304 (1.2 mm)

General

Net Weight

85 kg (165.35 lb) (single-motor); 120 kg (264.55 lb) (double-motor)

Gross Weight

105 kg (231.48 lb) (single-motor); 140 kg (308.65 lb) (double-motor)

Power Consumption

Single-motor module turnstile: ≤ 10W (standby); ≤ 130W (working) Double-motor module turnstile: ≤ 20W (standby); ≤ 260W (working)

Packaging

Wooden box

Operating Temperature

–25°C to +70°C (–13°F to +158°F)

Operating Humidity

5%–90% (RH) (non-condensing)

Operating Environment

Indoor and outdoor
