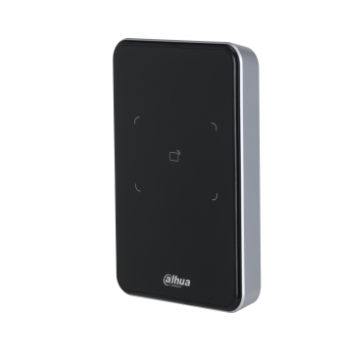

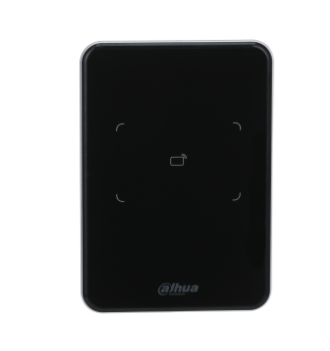

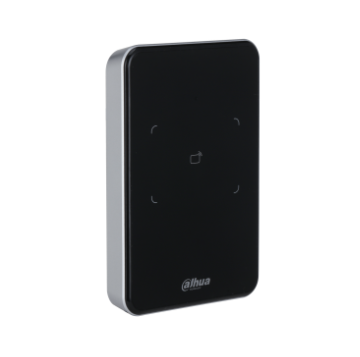

Dahua ASR2100A-ME Access Reader

描述

Access Reader

> PC material, acrylic panel and IP66, suitable for indoor and outdoor use

> Support contactless recognition of IC card (Mifare card) and ID card in two frequencies

> Support card unlock

> Support RS485 and Wiegand communication

> Support buzzer and indicator prompt

> Support anti-tampering alarm ·

> The built-in watchdog program can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment

> All connection ports have overcurrent and overvoltage protection

Basic
Product TypeCard reader
BuzzerYes
CasingPC/acrylic panel
Function
Unlock ModeCard swiping
Card TypeIC/ID card
Performance
Response Time0.1 s
Card Reading Distance0 cm–5 cm (0″–1.97″)
Port
RS-4851 channel
Wiegand1 output channel
Alarm
Tamper AlarmYes
General
Power Supply12V 0.5A DC
ProtectionIP66 (silicon sealant is needed, see the manual)
Power ConsumptionStandby ≤ 0.9W, working ≤1.7W
Product Dimensions123 mm × 86 mm × 15 mm (4.84″ × 3.38″ × 0.59″)

(L × W × H)

Packaging Dimensions185 mm × 163 mm × 71 mm (7.28″ × 6.41 × 2.80″)

(L × W × H, 1 in inner carton)
578 mm × 383 mm × 349 mm (22.76″ × 15.08″ × 13.74″) (L × W × H, carton)

Operating Temperature–30°C to +70°C (–22°F to +158°F)
Operating Humidity5%RH–95% (non-condensing)
Operating EnvironmentIndoor; outdoor
Gross Weight0.35 kg (0.77 lb)
InstallationSurface mount
CertificationsCE; FCC
