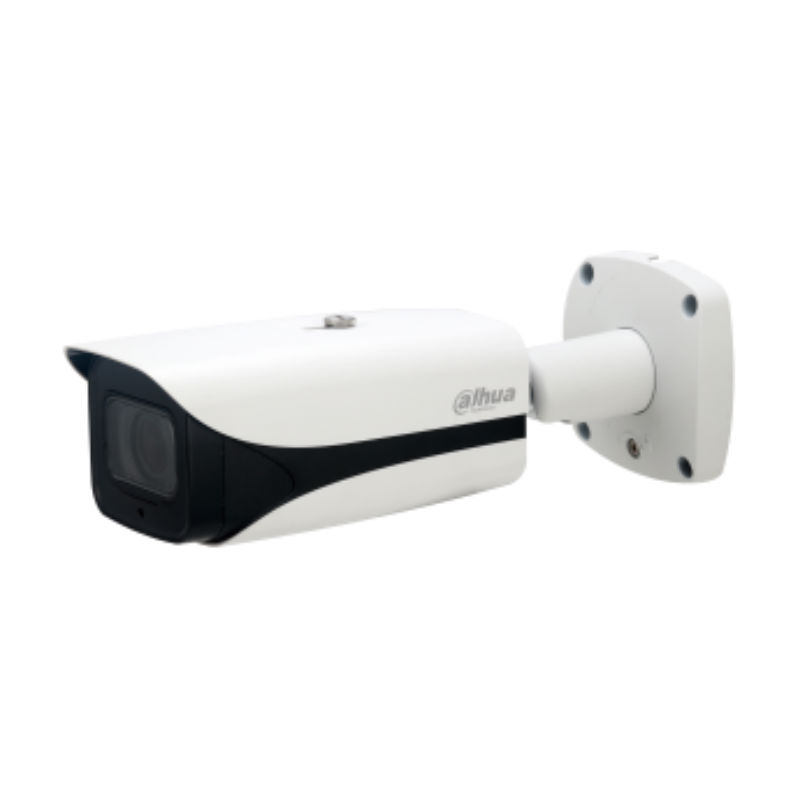

DAHUA IPC-HFW3241E-Z5

2MP IR Starlight Bullet Network Camera

> 1/2.8” 2Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 7mm ~35mm motorized lens
> Max. IR LEDs Length 100m
> Micro SD memory,IP67,IK10,PoE+

Description

Camera

Image Sensor 1/2.8 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.005Lux/F1.4 ( Color,1/3s,30IRE)

0.05Lux/F1.4 ( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 100m(328ft)
IR On/Off Control Auto/Manual
IR LEDs 4

Lens

Lens Type Motorized
Mount Type Board-in
Focal Length 7mm~35mm
Max. Aperture F1.4
Angle of View H: 36° ~13° , V: 20°~ 7°
Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 1.5m(4.9ft)
DORI

Disstant

Lens Detect Observe Recognize Identify
W 131m(429ft) 52m(170ft) 26m(85ft) 26m(85ft)
T 428m(1404ft) 171m(561ft) 86m(282ft) 43m(141ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Artificial Intelligence

Deep IVS Tripwire, Intrusion(Human&Vehicle classification)

Video

Compression H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~50/60fps)
Bit Rate Control CBR/VBR
Bit Rate H.264H:32Kbps ~ 8192Kbps

H.265:16Kbps~ 6144Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

Audio

Compression G.711A/G.711Mu/AAC/G.726

Network

Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android

Certifications

Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 2 channel In: 3.3V~5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply DC12V, PoE(802.3at)(Class 4)
Power Consumption DC 12V: 4.84W 13.9W(IR on)

PoE: 7.28W 18.8W(IR on)

Environmental

Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

Construction

Casing Metal
Dimensions 273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”)
Net Weight 1.12Kg (2.47lb)
Gross Weight 1.52Kg (3.35lb)
