DAHUA IPC-MFW7842K1-Z4-T20

描述

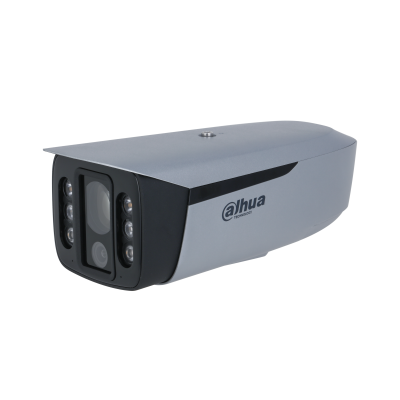

DAHUA IPC-MFW7842K1-Z4-T20

8+2 MP Dual-Sight Bullet WizMind Network Camera

Specifications

Camera

Image Sensor

Channel 1: 1/1.7″ CMOS

Channel 2: 1/2.7″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:

0.002 lux @F1.6(Color,30IRE)

0.00035 lux@F1.6(B/W,30IRE)

0 lux (Illuminator on)

Channel 2: 0.002 lux @F1.0(Color,30IRE)

0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

Channel 1:

100 m (328.08 ft) (IR)60 m (196.85 ft) (warm light)

Channel 2:

20 m (65.62 ft) (warm light)

Illuminator Number

2 (IR LED); 4 (Mixed (IR + warm) light)

Lens

Lens Type

Channel 1: Motorized vari-focal
Channel 2: Fixed-focal

Lens Mount

Channel 1: Module
Channel 2: M12

Focal Length

Channel 1: 8 mm–32 mm
Channel 2: 3.6 mm

Max. Aperture

Channel 1: F1.6
Channel 2: F1.0

Field of View

Channel 1:
Horizontal: 43° (W)–15° (T)
Vertical: 23° (W)–8° (T)
Diagonal: 50° (W)–17° (T)
Channel 2:
Horizontal: 81°
Vertical: 43°
Diagonal: 95°

Close Focus Distance

Channel 1:
W: 1 m (3.28 ft); T: 1.5 m (4.92 ft)
Channel 2:
2 m (6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Channel 1:

8 mm–32 mm
232 m

(761.15 ft)
Channel 2:

3.6 mm
80 m

(262.47 ft)

Channel 1:

8 mm–32 mm
93 m

(305.19 ft)
Channel 2:

3.6 mm
32 m

(104.99 ft)

Channel 1:

8 mm–32 mm
46.5 m

(152.56 ft)
Channel 2:

3.6 mm
16 m

(52.49 ft)

Channel 1:

8 mm–32 mm
23 m

(75.46 ft)
Channel 2:

3.6 mm
8 m

(26.25 ft)

Channel 1:

8 mm–32 mm
590 m

(1,935.70 ft)

Channel 1:

8 mm–32 mm
236 m

(774.28 ft)

Channel 1:

8 mm–32 mm
118 m

(387.14 ft)

Channel 1:

8 mm–32 mm
59 m

(193.57 ft)

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting

Face Recognition

Dahua Face Recognition Technology extracts attributes from the captured face, compares it against the attributes in the face library, and then identifies the person. Management of 5 group face libraries,Max supports face contrast in face library with 25,000 faces

People Counting

Tripwire people counting, people counting in area and queue management, generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management

Video Metadata

Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization;
optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling,etc.
Non-motor vehicle attributes: type, color, number of people, top type and color ,helmet.
Human body attributes: top/bottom type and color, bag, hat, gender, and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1:
50 Hz
Main Stream: 3840 × 2160@25 fps
Sub stream: 704 × 576@25 fps
Third stream: 1920 × 1080@25 fps
60 Hz
Main Stream: 3840 × 2160@30 fps
Sub stream: 704 × 480@30 fps
Third stream: 1920 × 1080@30 fps
Channel 2:
50 Hz
Main Stream: 1920 × 1080@25 fps
Sub stream: 704 × 576@25 fps
Third stream: 1920 × 1080@25 fps
60 Hz
Main Stream: 1920 × 1080@30 fps
Sub stream: 704 × 480@30 fps
Third stream: 1920 × 1080@30 fps

Resolution

Main Stream: 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520 (default); 2304 × 1296; 1920 × 1080; 1280 × 960; 1280 × 720
Sub Stream 1: 704 × 576 (default); 640 × 480; 352 × 288
Sub Stream 2: 1920 × 1080; 1280 × 720; 704 × 576 (default); 640 × 480

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Channel 1:

Auto(ICR)/Color/B/W

Channel 2:

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Noise Reduction

3D NR

Region of Interest (RoI)

4 areas

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; license plate recognition, people number error; tripwire; input error; intrusion; intensity change; fast moving; people counting; people gathering; motion detection; missing object; parking detection; loitering detection; defocus detection; face detection; abandoned object; stay detection; human detection; queuing stay time; people number error detection; face recognition; video tampering; scene changing

Network

Network Port

RJ-45 (10/100/1000 Base-T)

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 240M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

Plug-in:
IE: IE 9 and later
Chrome: Chrome 86 and earlier
Firefox: Firefox 86 and earlier
Without Plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

3 channels in: 5 mA 3 V–5 VDC

Alarm Output

2 channels out: 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE

Power Consumption

Basic: 5.5 W (12 VDC); 6.4 W (PoE)
Max. (ICR + vari-focal + IR intensity): 19.2 W (12 VDC); 24.6 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

283.1 mm × 123.2 mm × 109.5 mm (11.14″ × 4.85″ × 4.31″) (L × W × H)

Net Weight

1,905 g (4.20 lb)

Gross Weight

2,185 g (4.82 lb)
