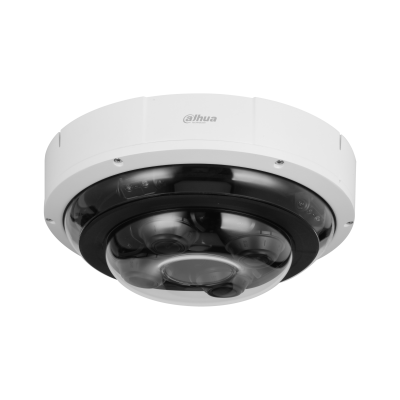

DAHUA IPC-PDBW82041-B360-S2

4 × 5 MP 4-Directional Panoramic Dome Wizmind Network Camera

Specifications

Camera
Image Sensor1/2.7″ CMOS
Max. Resolution2592 (H) × 1944 (V)
ROM8 GB
RAM4 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.005 lux@F1.7 (Color,30 IRE);
0.0005 lux@F1.7 (B/W,30 IRE);
0 lux (Illuminator on)
S/N Ratio>56dB
Illumination Distance30 m (98.43 ft) (IR LED)
Illuminator On/Off ControlAuto;Manual
Illuminator Number8 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens TypeMotorized vari-focal
Lens Mountφ14
Focal Length2.8 mm–12 mm
Max. ApertureF1.7
Field of ViewH: 100°–42°; V: 74°–32°; D: 133°–53°
Iris ControlFixed
Close Focus Distance0.8 m (2.62 ft)
DORI DistanceDetectObserveRecognizeIdentify
66 m–140.4 m

(216.54 ft–460.63 ft)

26.4 m–56.1 m

(86.61 ft–184.06 ft)

13.2 m–28.8 m

(43.31 ft–94.49 ft)

6.6 m–14 m

(21.65 ft–45.93 ft)

Smart Event
IVSAbandoned object; missing object
Intelligence
IVS (Perimeter Protection)Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People CountingTripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateSingle Stream:
Main stream: 2592 × 1944@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480

(1–30fps)

Third stream: 1920 × 1080@(1–25/30 fps)
Flex Stream:
Main stream: 1600 × 1200@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 3296 × 2472@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability3 streams
ResolutionSingle Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240);
Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–17152kbps
H.265: 12 kbps–10240 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto;Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image StabilizationElectronic Image Stabilization (EIS)
DefogYes
Image RotationYes
MirrorYes
Privacy Masking8 areas
Audio
Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception
Network
Network PortRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host20
StorageFTP; SFTP; Micro SD card (support max. 256 GB); NAS
BrowserIE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later
Management SoftwareSmart PSS; DSS; DMSS
Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
RS-4851 (baud rate range:1200 bps–115200 bps)
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input3 channels in: 5 mA 3–5 VDC
Alarm Output2 channels out: 300 mA 12 VDC
Power
Power Supply12 VDC/PoE+( 802.3at )
Power ConsumptionBasic power consumption: 7.4 W (12 VDC); 9.3W (PoE)
Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7 W (PoE+)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–30 °C to +60 °C (–22 °F to +140 °F)
ProtectionIP67; IK10; anti-corrosion protection (optional)
Structure
Casing MaterialMetal + plastic
Product Dimensions111.3 mm × Φ286.1 mm (4.38″× Φ11.26″)
Net Weight2.75 kg (6.06 lb)
Gross Weight4.5 kg (9.92 lb)
