描述

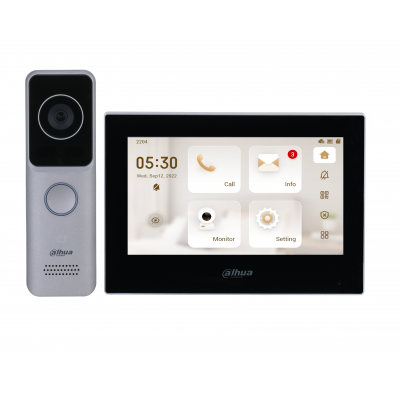

KTW02
Wi-Fi Villa Door Station& IP Indoor Monitor
KTW02 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
DHI-VTO2311R-WP
System
| Main Processor |
Embedded Processor |
| Button Type |
Mechanical |
| Interoperability |
ONVIF; CGI |
| Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic
| Camera |
1/2.8" CMOS 2-MP HD camera |
| Field of View |
H: 110°; V: 62°; D: 133° |
| WDR |
120 dB |
| Noise Reduction |
3D NR; 2D NR |
| Video Compression |
H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, and CIF Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
| Video Frame Rate |
PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate |
768 kbps–8 Mbps |
| Light Compensation |
Auto IR |
| Day/Night |
Auto (ICR)/Color/B/W; Color/B/W |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction;Echo suppression; Digital noise reduction |
| Audio Bit Rate |
16 kHz, 16 bit |
Function
| Communication Mode |
Full digital |
| Unlock Mode |
Card; app; indoor monitor |
| Card Type |
IC card |
| Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| Web Configuration |
Yes |
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range |
2.4 GHz |
| Storage |
Micro SD card (max. 256 GB) |
Performance
| Card Reading Distance |
0 cm–3 cm (0"–1.18") |
| Issue Card Locally |
Yes |
| Casing |
PC + ABS |
Capacity
Port
| Exit Button |
1 |
| Door Status Detection |
1 |
| Lock Control |
1 |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
Alarm
General
| Appearance color |
Light grey |
| Power Supply |
12–33 VDC, 1 A ;Standard PoE |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE; FCC |
| Accessory |
Included: Alarm power ribbon cable, rain cover |
| Product Dimensions |
160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18") |
| Protection |
IP65 |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
10%–90% (RH), non-condensing |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption |
≤ 3.5 W (standby), ≤ 6 W (working) |
| Gross Weight |
0.4 kg (0.88 lb) |
| Net Weight |
0.18 kg (0.40 lb) |
DHI-VTH2621G-WP
System
| Main Processor |
Embedded processor |
| Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
Basic
| Screen Type |
Capacitive touchscreen |
| Display |
7" TFT |
| Screen Resolution |
1024 × 600 |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way Audio |
| Audio Enhancement |
Echo suppression |
| Audio Bit Rate |
16 kHz; 16 bit |
Function
| Communication Mode |
Full digital |
| Information Release |
Receive and view text information released by the management center |
| DND Mode |
Do not disturb period can be set; Do not disturb mode |
| Number of Extensions |
Villa: 9 Apartment: 4 |
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range |
2.4 GHz |
| Wireless Security Encryption |
WPA/WPA2; WPA-PSK/WPA2-PSK |
Performance
Port
| Alarm Input |
6 |
| Alarm Output |
1 |
| Power Output |
1 (12 V/200 mA) |
| Door Bell |
Yes (use any alarm input port) |
| Network |
1 × RJ-45 10/100 Mbps Ethernet port |
Alarm
General
| Color |
Black |
| Power Supply |
12 VDC 1A Standard PoE |
| Installation |
Surface Mount |
| Certifications |
CE; FCC |
| Accessory |
Bracket and alarm ribbon cable (included) |
| Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% RH (non-condensing) |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption |
≤2 W (standby); ≤6 W (working) |
| Net Weight |
0.34 kg (0.74 lb) |
| Gross Weight |
0.58 kg (1.27 lb) |
