Design XS – European Wall Reader

分類: 標籤:

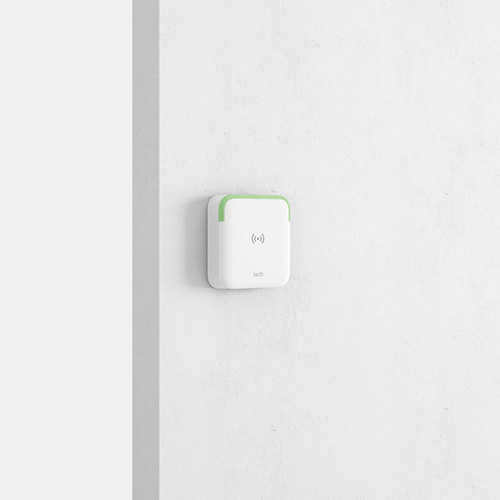

Design XS – European Wall Reader

The SALTO Wall Reader incorporates the cutting-edge design standard of the XS4 2.0 product range in this technological powerhouse. In combination with the SALTO Controller (CU42xxx or CU41xxx)*, it facilitates the integration of the wall reader with almost any SALTO interface, to provide your facility with a complete security solution.


  • Modern aesthetic design with green/red and blue clear LED colour optical signal.
  • Conical or flat square shape with rounded corners.
  • Compatible with standard European electric boxes.
  • Virtual network capable through SALTO SVN data-on-card technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
  • Available for surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.
  • Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.

Technical Characteristics

  • Specially designed to fit European standard electric boxes, making the installation quick and easy.
  • To be used in combination with controllers (CU42xxx) or SALTO KS controllers (CU41xxx).
  • Connection to the door controller: 4 wires.
  • Designed to work with an online SVN access control platform, or with a stand-alone system.
  • Maximum distance between the door controller and the wall reader 400m1 using a twisted pair cable.
  • Includes tamper to monitor if the wall reader has been opened.
  • Reading distance from 35 to 50mm depending on the RFID technology.

Technology platforms

  • SVN data-on-card
  • JustIN Mobile – Digital Key
  • Cloud Service
  • Digital Key
  • Smart Tag

Technical Drawing
