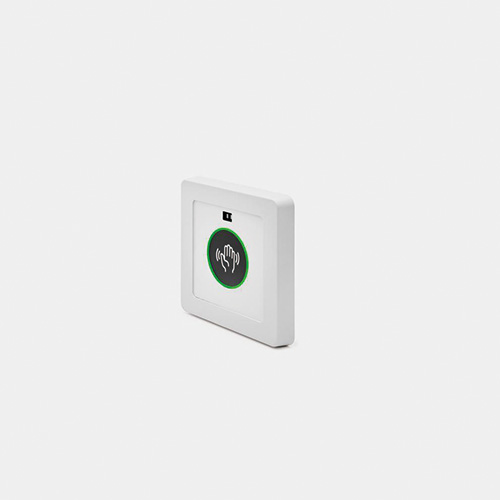

Wave XS – DK Touchless Button

The Wave XS is a touchless button that permits an easy and clean operation of a large number of activator devices. Wave XS reader technology offers 100% touch-free automated access control. Depending on the configuration, the Wave XS reader’s capacitive technology can sense hand gestures. All the user has to do is approach the door and their hand activates the door opening, which makes for simple operation and eliminates the need to touch any surface.

Features

  • Hands-free wave to unlock touchless technology (Infrared)
  • Black and white faceplate & surface mount
  • Optical clean signalling, the dual colour green/red to indicate access authorisation. A green and red led permits to clearly identify the button and confirm its status. This is completed with a clear text or symbol located on the reader.
  • Several design, text and symbol configurable options
  • Different calibration options to select the reading distance and operating duration.
  • Compact design with standard wiring.
  • Compatible with standard Danish electric boxes.
  • Concealed fixing screws for greater security and improved aesthetics.

Technical Characteristics

  • Compatible with SALTO Space and SALTO KS technology platform.
  • 2 Outputs (Open collector)
  • IP65 protection rate for indoor and outdoor use.
  • Operating temperature: -20°C ~ +70°C
  • Voltage interval: 12 – 24 VDC, 30 mA
  • To be used in combination with controllers (CU42xxx) or SALTO KS controllers (CU41xxx).

Technical Drawing
