描述
DrayTek Vigor3912 系列是 10G 高效能路由器，四核心處理器，設 10G SFP+，支援負載平衡、頻寬管理、VPN（包括 SSL VPN 及雙重認證）及集中管理 AP／交換機。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：辦公室方案、Server Room 架設及維修。

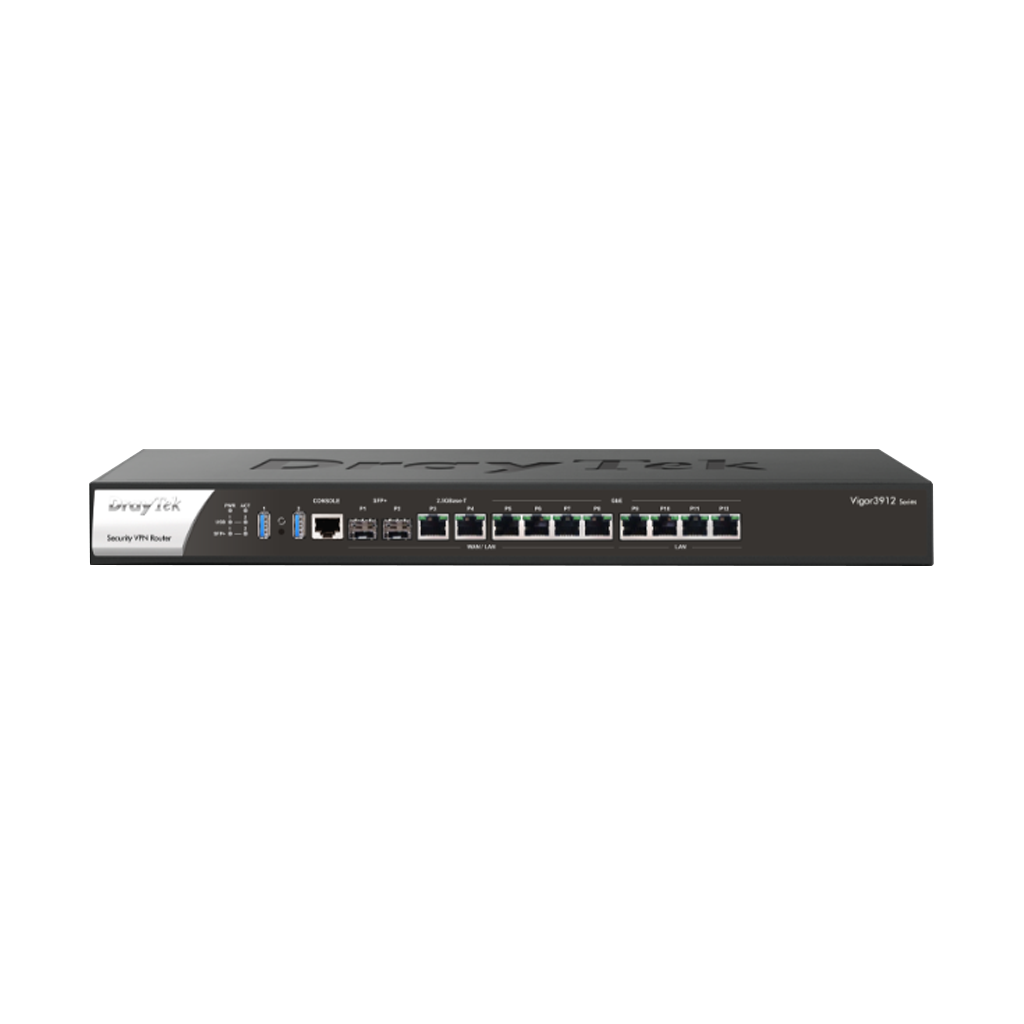

DrayTek Vigor3912 Series
10G High-Performance Router
Features
- Quad-Core Processor
- PPPoE Server
- 10G SFP+
- Hotspot Web Portal
- Load Balancing
- Bandwidth Management
- VPN (Virtual Private Network)
- Firewall & Content Filter
- SSL VPN
- EasyVPN
- DrayDDNS
- VPN 2FA Auth for AD/LDAP
- Central AP Management
- VPN Matcher
- Central Switch Management
- Port Knocking
- VRRP
Specifications
| Performance | |
| NAT Session | 1000K |
| Max. NAT with Software Acceleration (single-directional) (Mbps) | 9450 |
| Max. NAT with Software Acceleration (bi-directional) (Mbps) | 15600 |
| WAN | |
| Ethernet (1 GbE) | 4 |
| Ethernet (2.5 GbE) | 2 |
| Ethernet – LAN/WAN Switchable | √ |
| SFP (10G) | 2 |
| SFP – WAN/LAN Switchable | √ |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
Fast Routing
RIP v1/v2
BGP
OSPFv2
|
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
| Smart Action |
√
|
| High Availability |
Dray High Availability
VRRP
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| Local RADIUS server | √ |
| Physical | |
| Power Input | AC 100~240V @ 0.5-0.7A |
| Max. Power Consumption (watts) | 35 |
| Memory | Vigor3912: 8GB DDR4 Vigor3912S: 8GB DDR4 + 256GB SSD |
| Dimension (mm) | 443 x 285 x 45 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -10 to 55°C |
| Operating Humidity (non-condensing) | 10 to 90% |
